Dell Latitude D430 Service Manual

Back to Contents Page
 Coin-Cell Battery
Dell™Latitude™D430

1. Follow the procedures in "BeforeYouBegin"onpage7.

2. Remove the keyboard (see Keyboard).

3. Disconnect the coin-cell battery cable connector from the system board connector.

4. Remove the coin-cell battery from the system board.
When you replace the battery, insert it at a 30-degree angle under the clip with the positive (identified by a plus [+] symbol) side up, and then push it into
place.
Back to Contents Page

CAUTION: Before performing the following procedures, follow the safety instructions in your Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching a connector on the back panel of
the computer.
NOTICE: To prevent damage to the system board, remove the main battery before you service the computer.

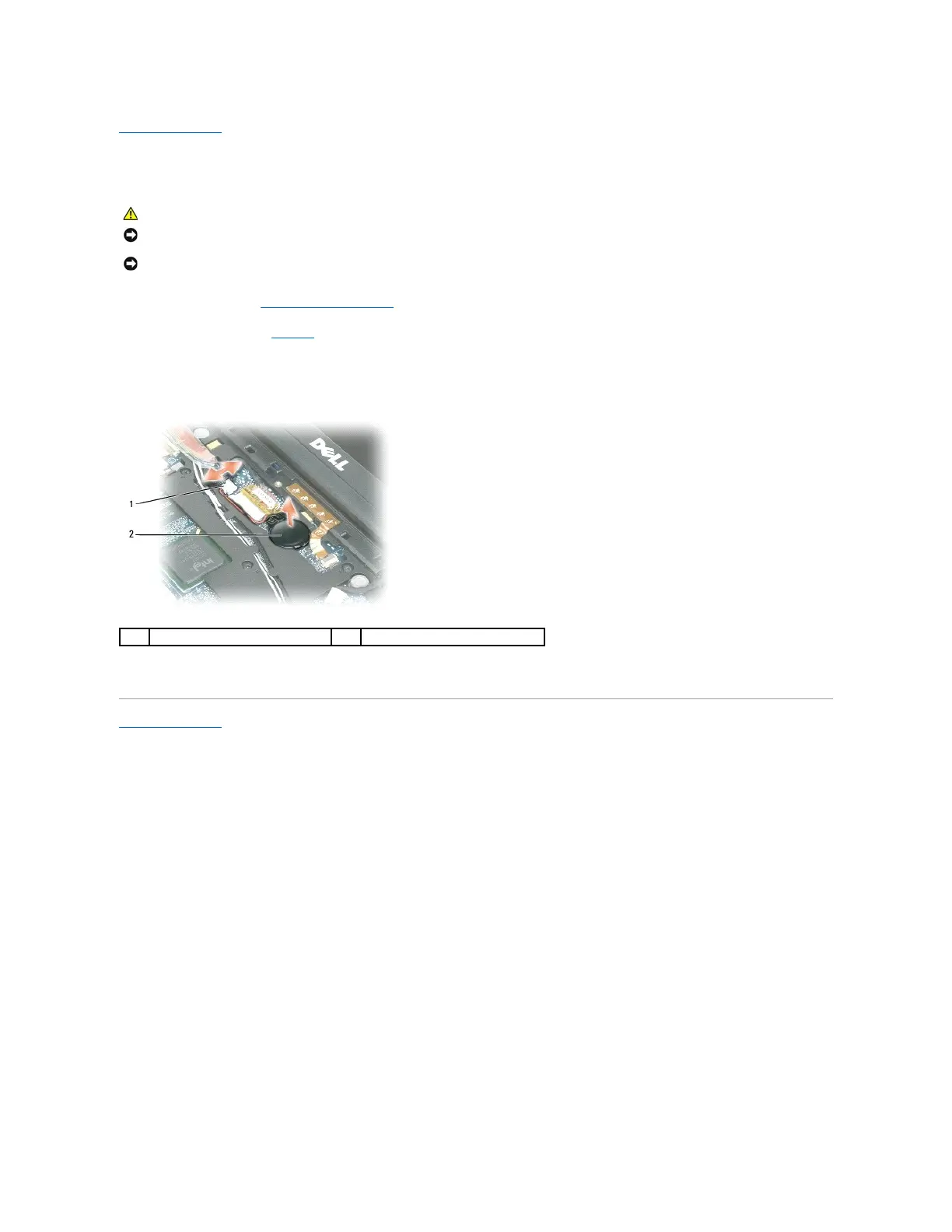

1
cable connector
2
coin-cell battery

Dell Latitude D430 Specifications

General

RAM	Up to 2GB DDR2
Graphics	Intel GMA 950
Battery	4-cell or 6-cell Lithium Ion
Chipset	Intel 945GMS
Processor	Intel Core 2 Duo U7600 (1.2 GHz)
Storage	60GB, 80GB
Display	12.1-inch WXGA (1280x800) LCD
Operating System	Windows XP Professional
Optical Drive	External (optional)
Wireless	802.11a/b/g
Ports	2 x USB 2.0, VGA, Ethernet, Modem, Headphone/Microphone, Docking Connector
