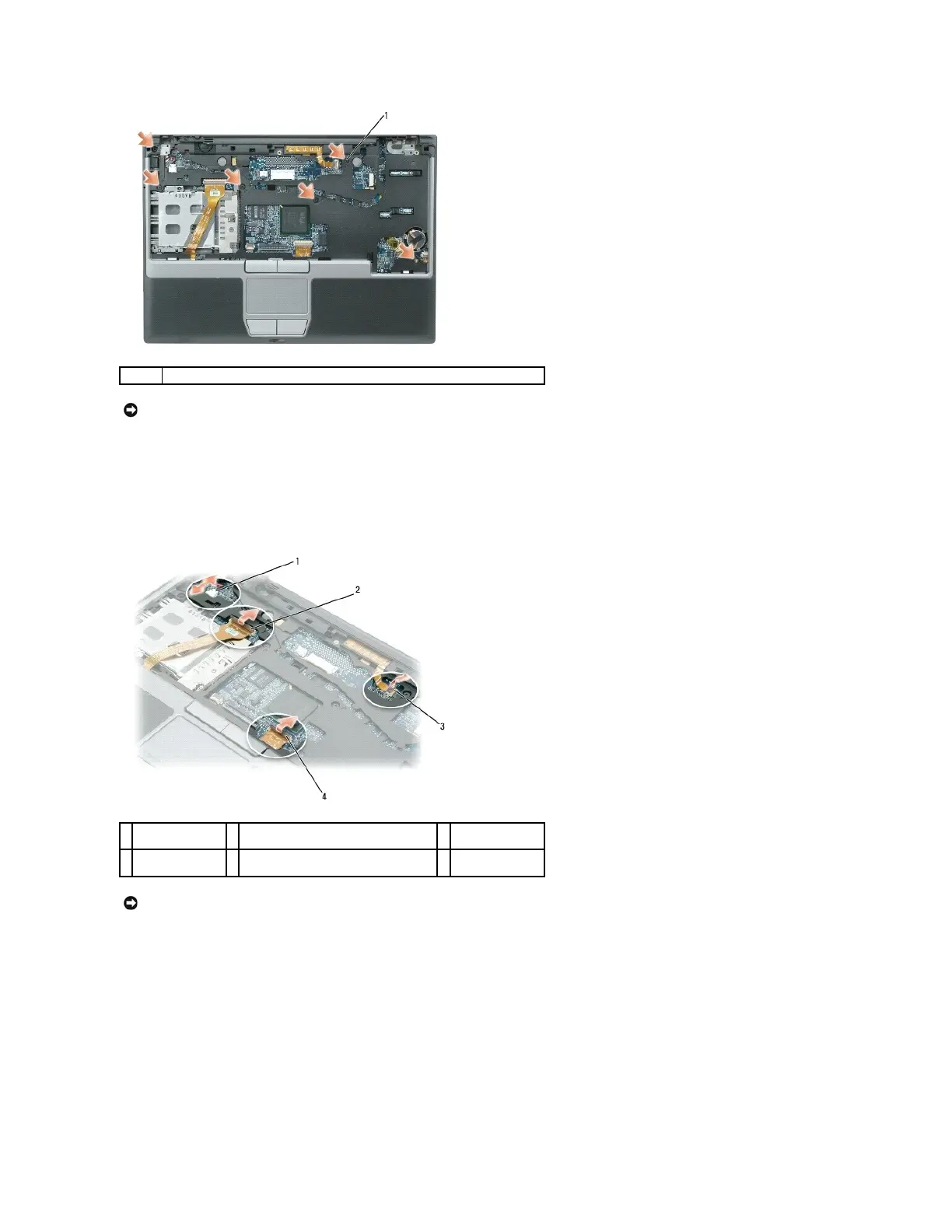

11. Disconnect the speaker connector from the system board.

12. Disconnect the Secure Digital/SIM card reader cable from the system board.

13. Disconnect the touch pad cable from the system board.

14. Lift the plastic bar on the LED board connector and disconnect the LED board cable from the system board.

15. Starting at the back center of the palm rest, use your fingers to separate the palm rest from the computer base by lifting the inside of the palm rest
while pushing in on the outside.
1
M2.5 x 5-mm screws (6)
NOTICE: Pull on the plastic tab on top of the connectors to avoid damaging the connectors.
1
speaker connector
2
Secure Digital/SIM card reader cable
connector
3
LED board
connector
4
touch pad
connector




NOTICE: Carefully separate the palm rest from the computer base to avoid damage to the palm rest.
