Dell Latitude E5570 - Dock Frame and Smart Card Reader Procedures; eDP Cable Removal

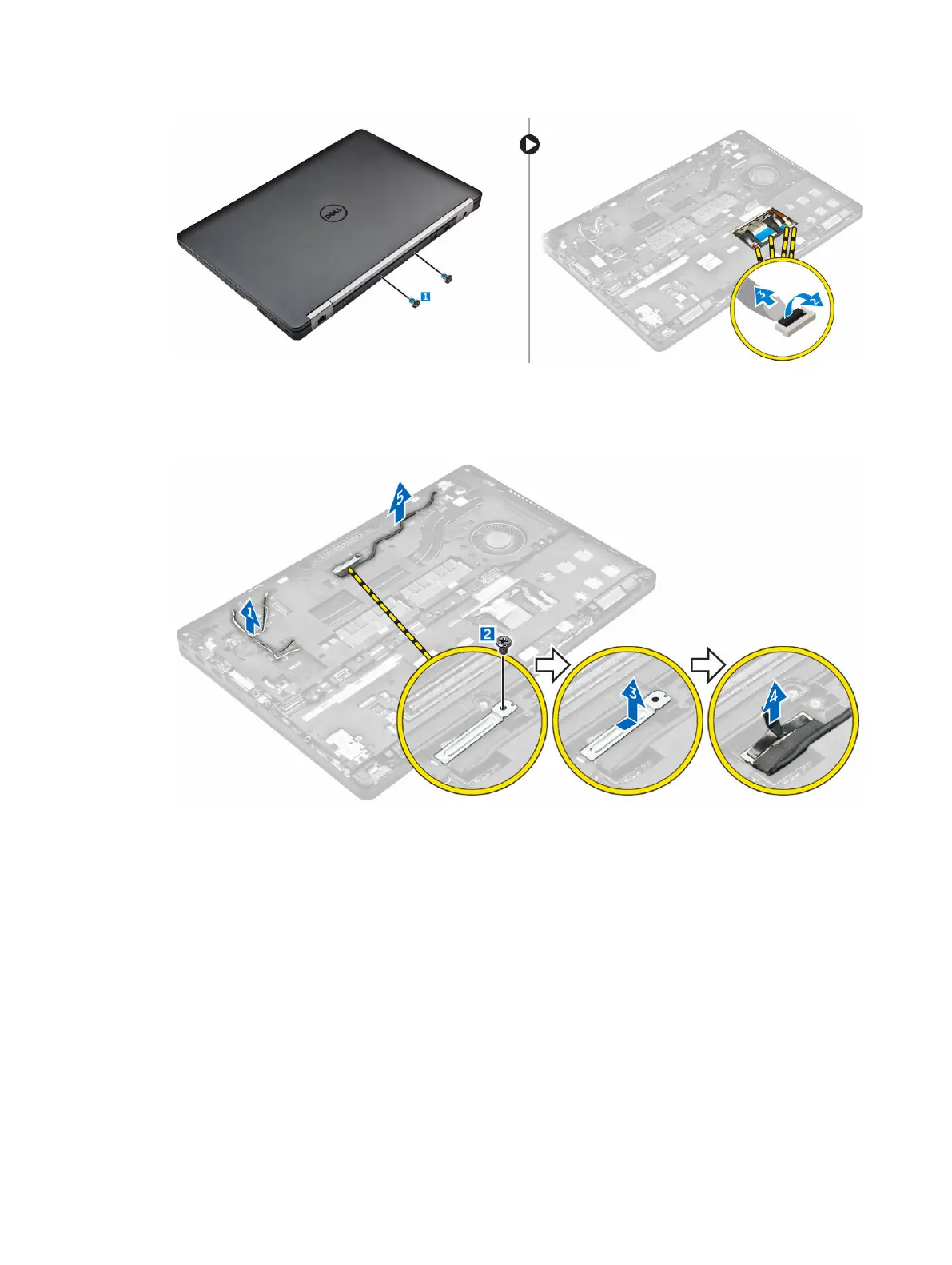

4. To remove the eDP cable:
a. Unroute the WWAN and WLAN cables from the doc frame [1].
b. Remove the screw and lift the metal bracket [2, 3].
c. Disconnect the eDP cable [4].
5. To remove the dock frame:
a. Remove the screws that secure the dock frame to the computer [1].
b. Lift the dock frame from the computer [2].
23
