Dell Latitude E5570 - Removing the Dock Frame

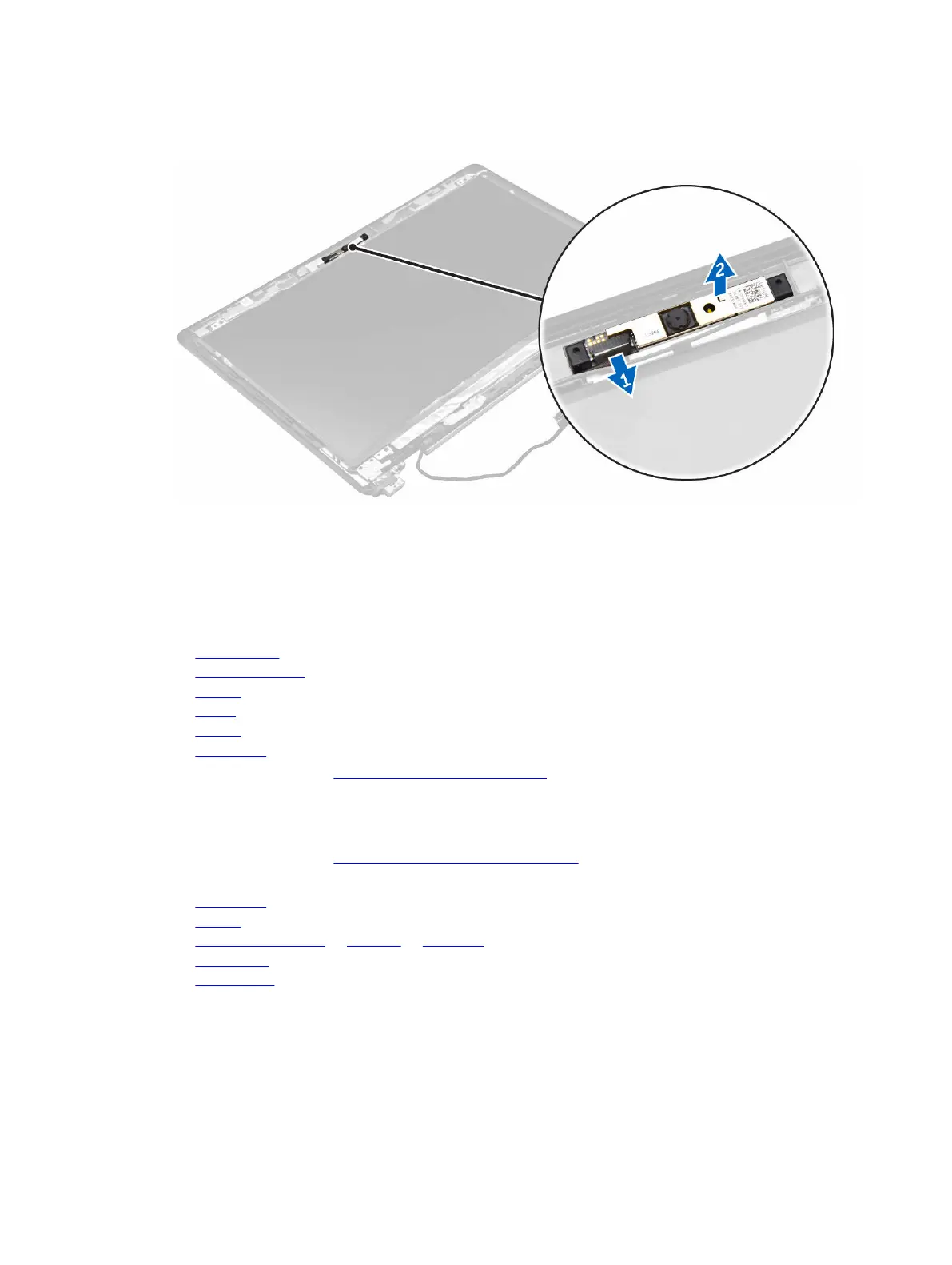

a. Disconnect the camera cable from the connector on the display assembly [1].
b. Lift the camera away from the display assembly [2].
Installing the camera
1. Place the camera on the display assembly.
2. Connect the camera cable to the connector on the display assembly
3. Install the:
a. display bezel
b. display assembly
c. WWAN
d. WLAN
e. battery
f. base cover
4. Follow the procedure in After working inside your system.
Removing the dock frame
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. base cover
b. battery
c. hard drive assembly or M.2 SSD or PCIe SSD
d. WLAN card
e. WWAN card
3. To remove the dock frame connectors:
a. Remove the screws that secure the dock frame to the computer [1].
b. Disconnect the keyboard cables [2, 3].
22
