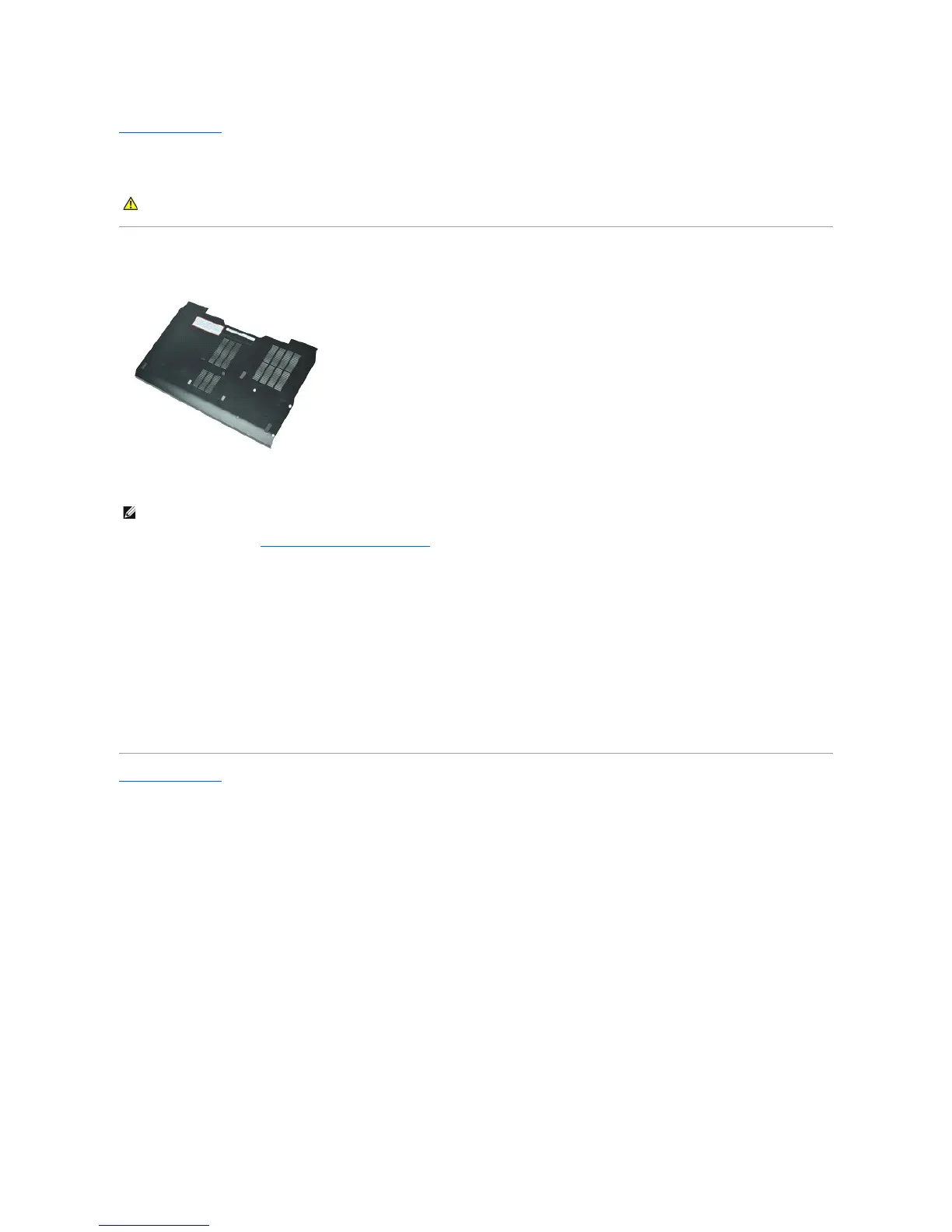

Access Panel
DellPrecision™MobileWorkstationM4500ServiceManual
Removing the Access Panel
1. Follow the procedures in Before Working Inside Your Computer.
2. Loosen the captive screw that secures the access panel to the base of the computer.
3. Slide the access panel towards the front of the computer.
4. Lift the access panel up and away from the computer.
Replacing the Access Panel
To replace the access panel, perform the above steps in reverse order.
