Dell Latitude XT2 - Page 41



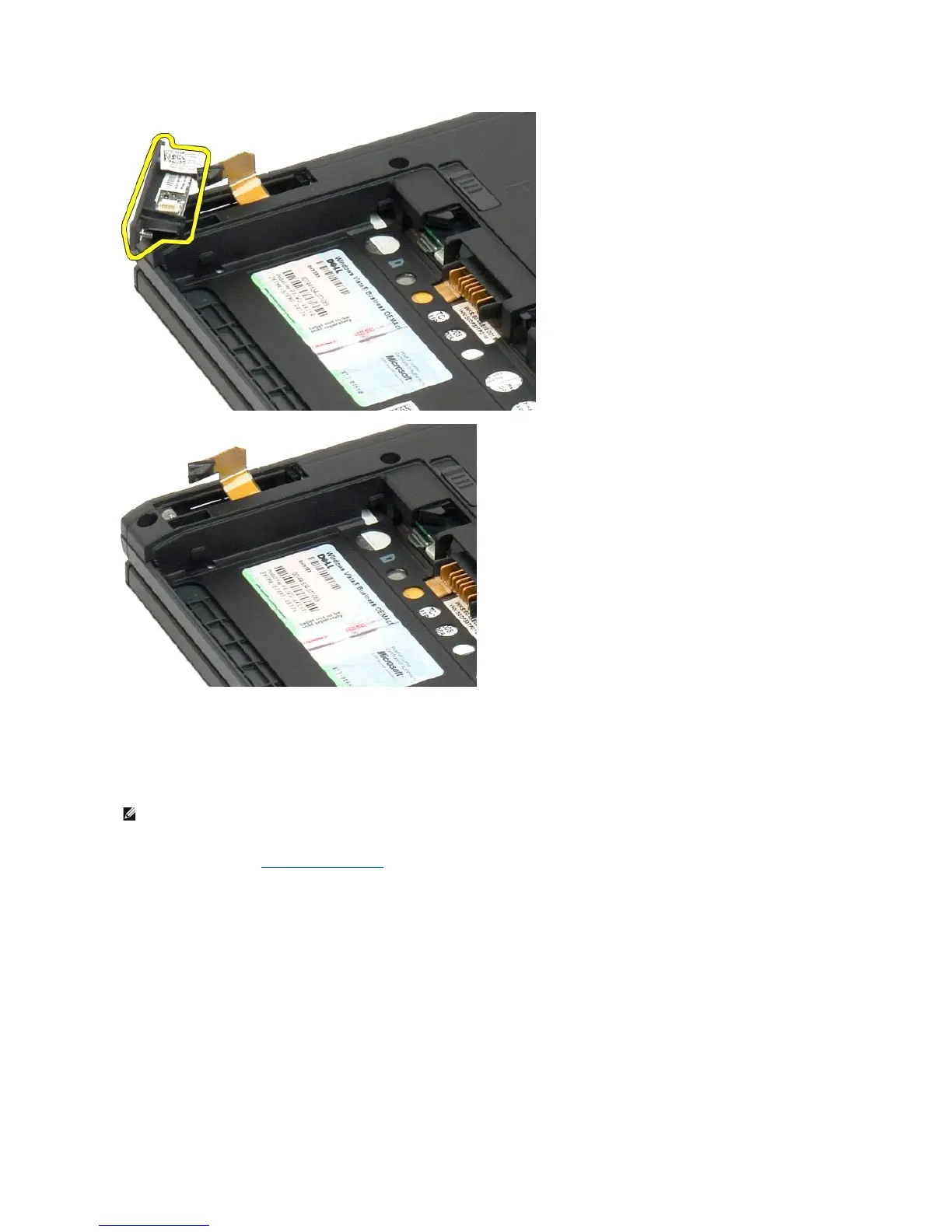

Replacing the Internal Card With Bluetooth Wireless Technology
1. Connect the Bluetooth cable to the new Bluetooth assembly.

2. Carefully slide the Bluetooth assembly into the bay.
3. Replace the captive screw on the Bluetooth assembly to secure the Bluetooth assembly in place.

4. Replace the battery. See Replacing the Main Battery.
Note: Ensure that the Bluetooth cable does not disconnect from the Bluetooth assembly when sliding it into the bay.
