Dell Latitude XT2 - Removing the Coin-Cell Battery

Coin-Cell Battery
Dell™Latitude™XT2ServiceManual
Removing the Coin-Cell Battery
Replacing the Coin-Cell Battery

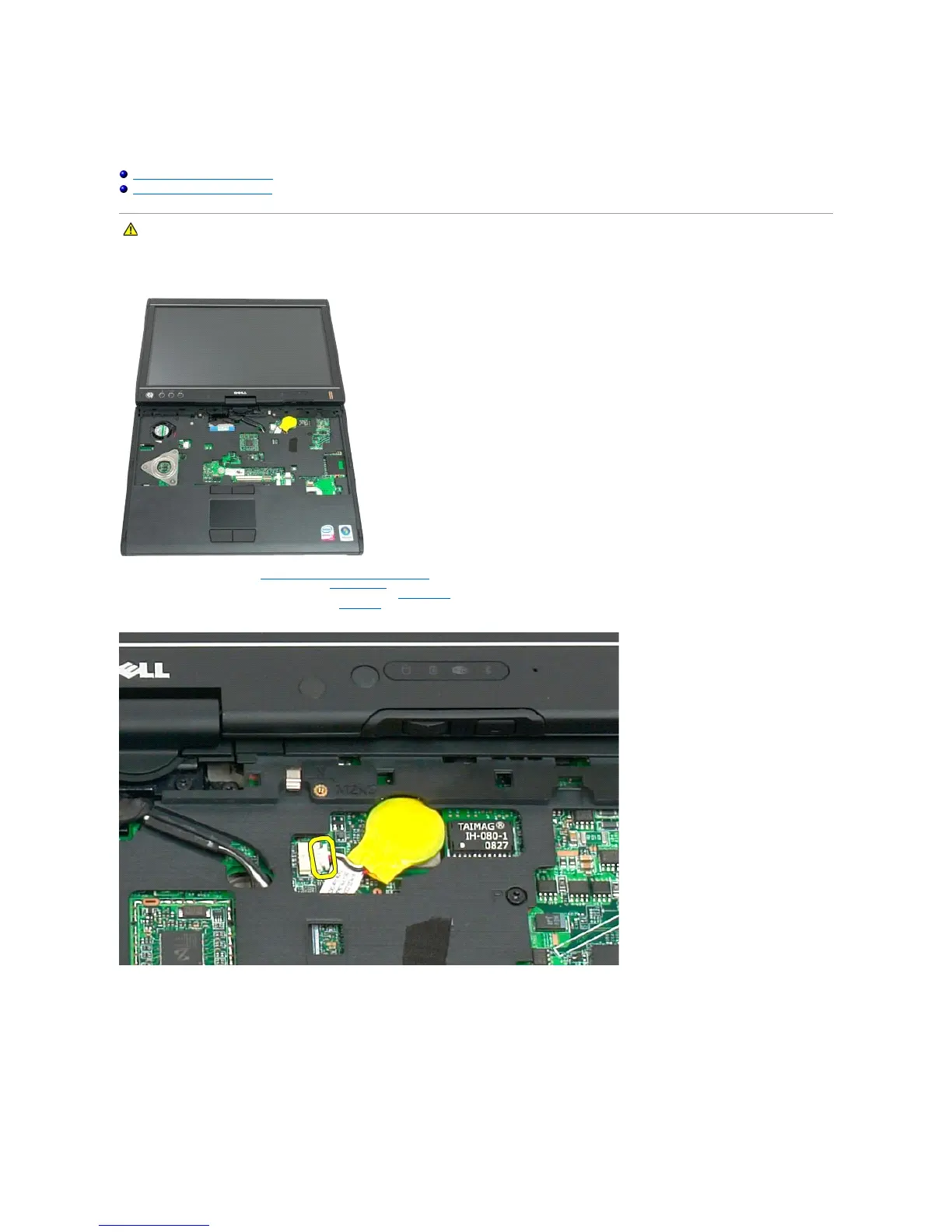

Removing the Coin-Cell Battery
1. Follow the procedures in Before Working Inside Your Tablet-PC.
2. Turn the computer over and remove the main battery from the Tablet-PC.
3. Turn the computer over to the top side and remove the hinge cover from the Tablet-PC.
4. To get to the coin-cell battery, remove the keyboard from the Tablet-PC.
5. Disconnect the coin-cell cable from the system board.
6. Gently pry the coin-cell loose from the adhesive that attaches it to the system board and remove from the Tablet-PC.
WARNING: Before working inside your Tablet-PC, read the safety information that shipped with your Tablet-PC. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
