1.3 Cabling diagram
The cabling diagram shown below represents the Dell recommend method for deploying your servers and
EqualLogic arrays.

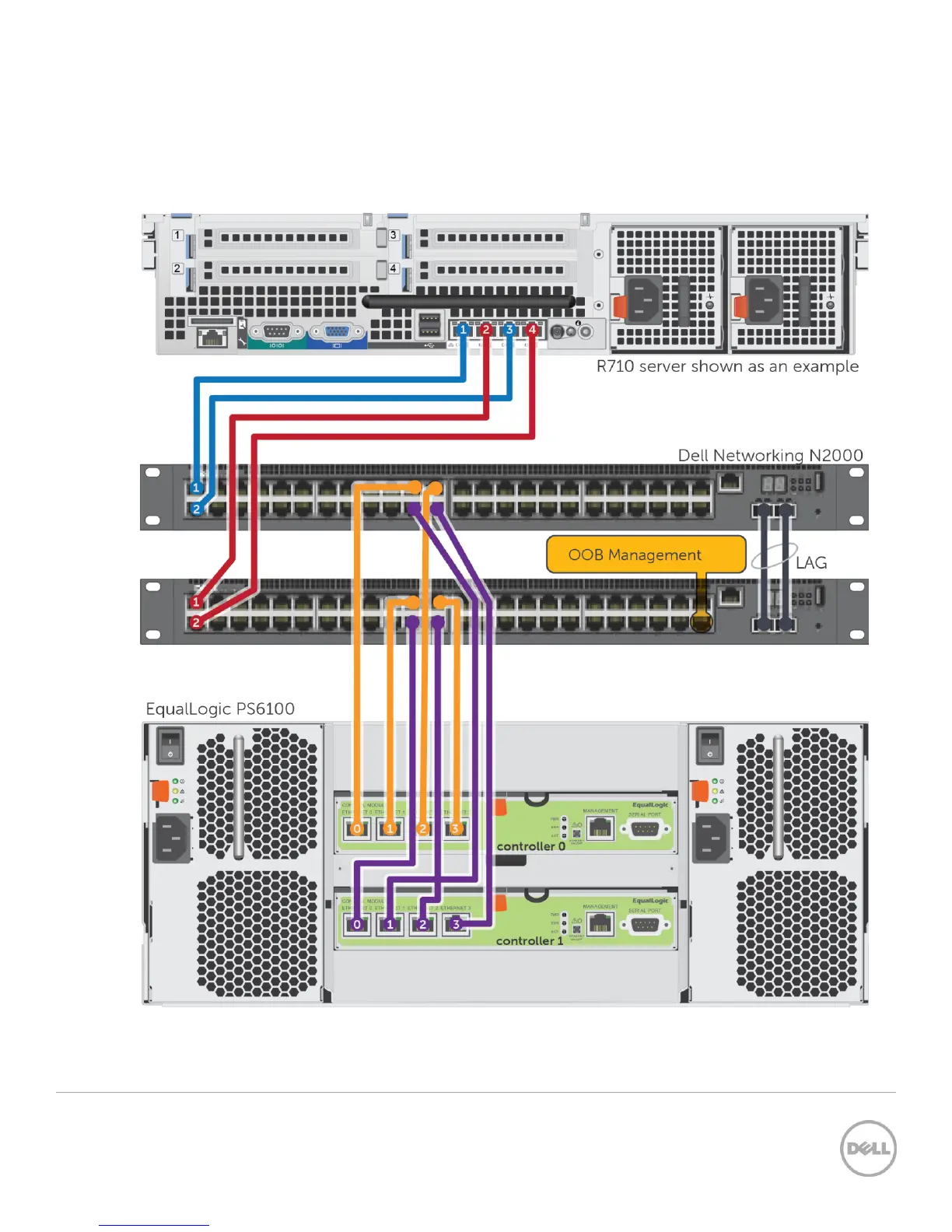

Figure 1 Cabling diagram
