14 Expansion Modules for Dell Networking Switches

4.2 Dell Networking N4000 Series (N4032, N4032F,N4064, N4064P)

There are four different switch models in the Dell Networking N4000 series, each with one expansion module located

on the front of the chassis. The following modules are supported:

 4 x 10GBASE-T module

 4 x SFP+ module

 2 x 40G QSFP

The modules are hot-swappable, so modules can be installed without rebooting the switch. The yellow outlines in

Figure 8 show the expansion slot for each switch.

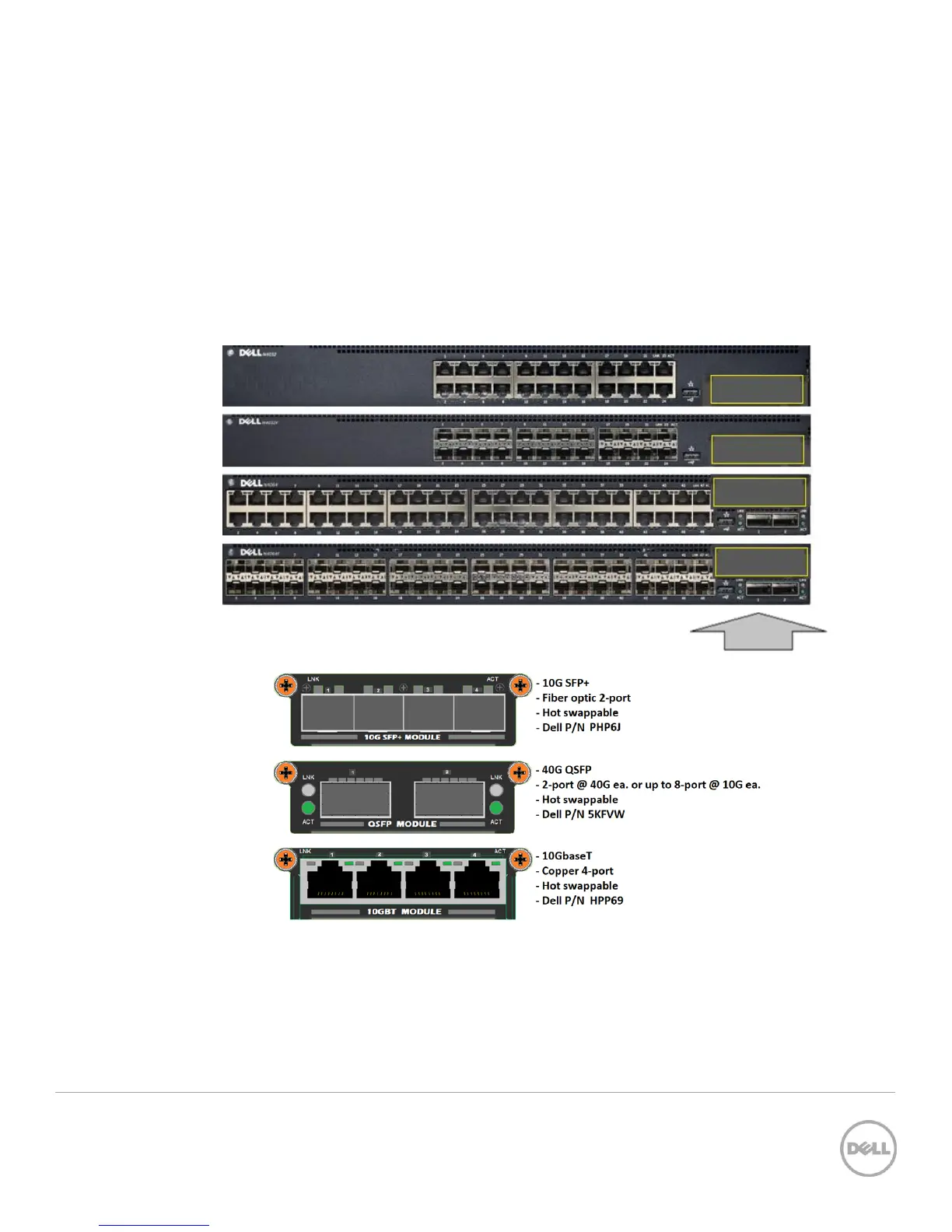

Figure 8 Dell Networking N4000 Series Switch (40/10G Ethernet) and Available Modules

Dell Networking N4000 switches support the same expansion modules as the Dell Networking 81xx and the MXL

modular switch.

Questions and Answers:

Need help?

Do you have a question about the Dell Networking N3048P and is the answer not in the manual?

Dell Networking N3048P Specifications

General

Switching Capacity	176 Gbps
Forwarding Rate	131 Mpps
Rack Units	1U
Enclosure Type	Rack-mountable
Subtype	Gigabit Ethernet
Power Device	Internal power supply
Installed Qty	1
Voltage Required	AC 120/230 V (50/60 Hz)
Power Supply	AC 120/230 V (50/60 Hz)
Ports	48 x 10/100/1000Base-T
Uplink Ports	4 x 10G SFP+
Device Type	Switch - stackable
Jumbo Frame Support	9KB
Routing Protocol	OSPF, RIP, VRRP, PIM-SM, PIM-SSM
Remote Management Protocol	SNMP 1, SNMP 3, Telnet, SSH-2, CLI
Features	Flow control, DHCP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Quality of Service (QoS), MLD snooping, LLDP support, Port Security
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3at
Operating Temperature	32 °F to 113 °F (0 °C to 45 °C)
Operating Humidity	10 to 90% (non-condensing)
MAC Address Table Size	32000 entries
Weight	7.93 kg
