Dell Networking N3048P User Manual

8 Expansion Modules for Dell Networking Switches
3 Blade Switches and Corresponding Modules
The sections below describe each blade switch and their corresponding modules.
3.1 Dell PowerEdge M1000e Blade Chassis
The Dell PowerEdge M1000e blade chassis has six slots in the rear allow Dell Networking switches to
be installed. Most of these blade switches also have hardware upgrades of their own in the form of
expansion modules as shown in Figure 1.
.

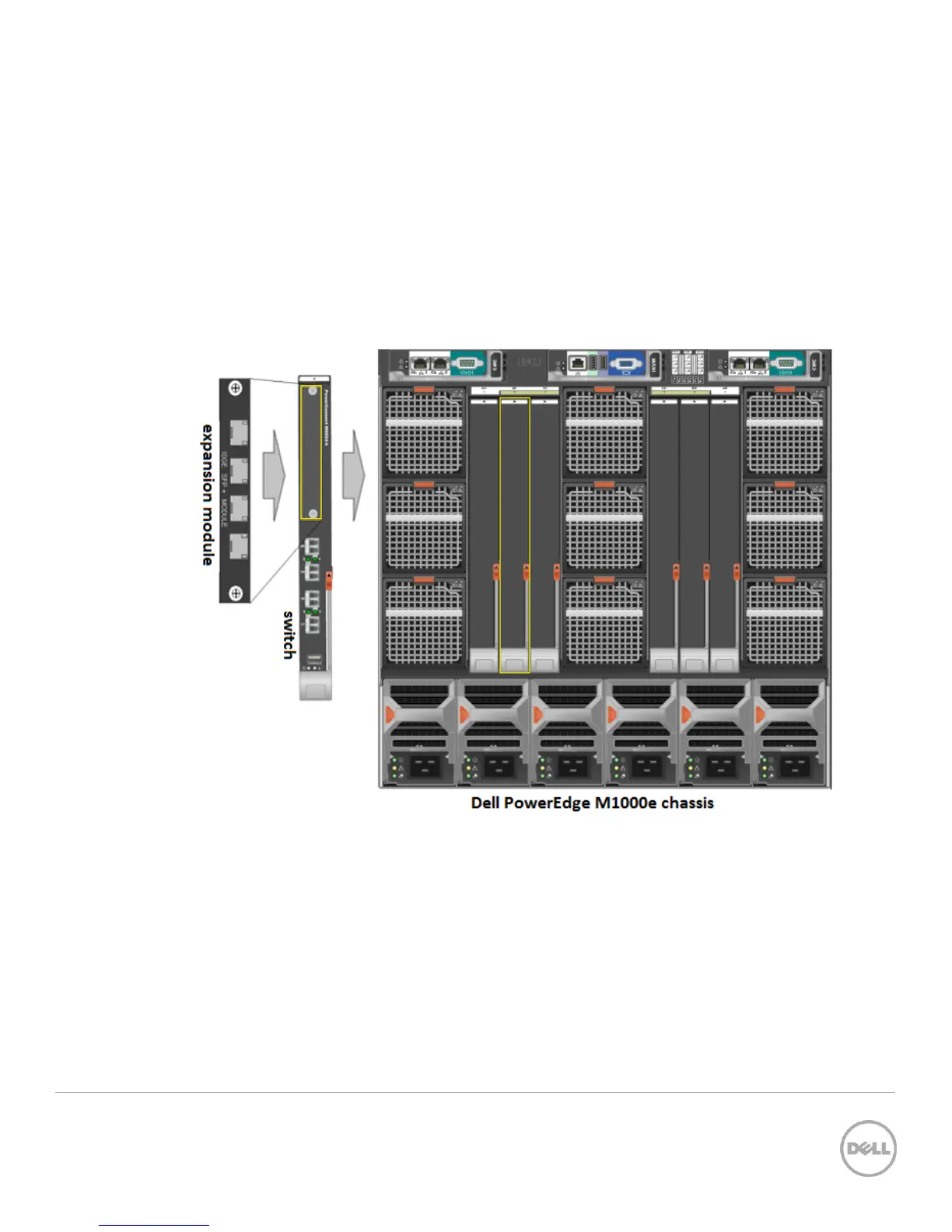

Figure 1 Example of an Expansion Module for Blade Switch
This section identifies each type of blade switch for the M1000e system and the corresponding
expansion modules. It also provides an overview of each of these modules to help in identifying the
right module for its purpose. A picture of each switch is provided below. Under each switch are
pictures of supported modules, descriptions, and Dell part numbers for identification.

Dell Networking N3048P Specifications

General

Switching Capacity	176 Gbps
Forwarding Rate	131 Mpps
Rack Units	1U
Enclosure Type	Rack-mountable
Subtype	Gigabit Ethernet
Power Device	Internal power supply
Installed Qty	1
Voltage Required	AC 120/230 V (50/60 Hz)
Power Supply	AC 120/230 V (50/60 Hz)
Ports	48 x 10/100/1000Base-T
Uplink Ports	4 x 10G SFP+
Device Type	Switch - stackable
Jumbo Frame Support	9KB
Routing Protocol	OSPF, RIP, VRRP, PIM-SM, PIM-SSM
Remote Management Protocol	SNMP 1, SNMP 3, Telnet, SSH-2, CLI
Features	Flow control, DHCP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Quality of Service (QoS), MLD snooping, LLDP support, Port Security
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3at
Operating Temperature	32 °F to 113 °F (0 °C to 45 °C)
Operating Humidity	10 to 90% (non-condensing)
MAC Address Table Size	32000 entries
Weight	7.93 kg
