Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
NOTE: This procedure applies only to computers with a plastic chassis.

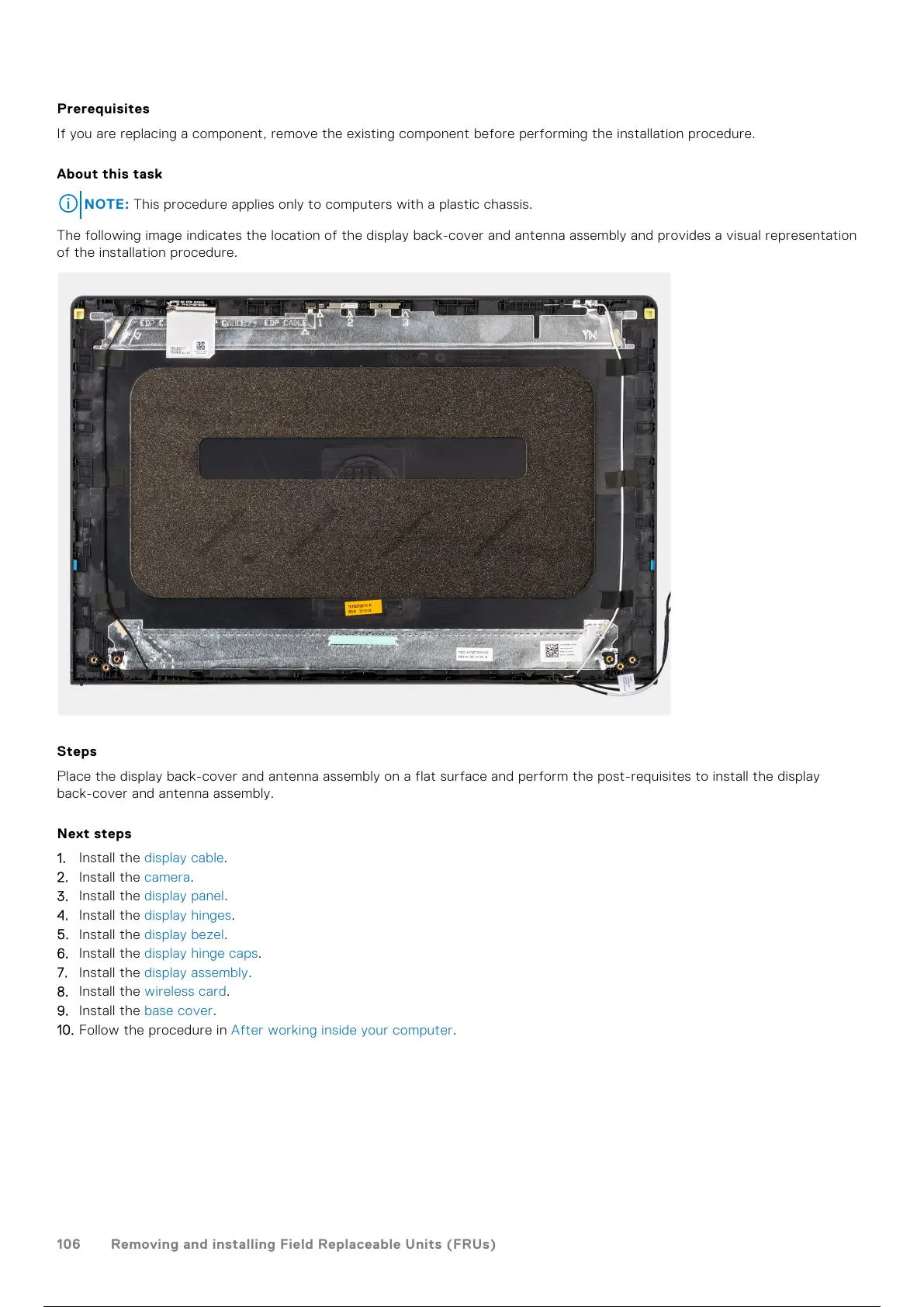

The following image indicates the location of the display back-cover and antenna assembly and provides a visual representation
of the installation procedure.
Steps
Place the display back-cover and antenna assembly on a flat surface and perform the post-requisites to install the display
back-cover and antenna assembly.
Next steps
1. Install the display cable.
2. Install the camera.
3. Install the display panel.
4. Install the display hinges.
5. Install the display bezel.
6. Install the display hinge caps.
7. Install the display assembly.
8. Install the wireless card.
9. Install the base cover.
10. Follow the procedure in After working inside your computer.
106
Removing and installing Field Replaceable Units (FRUs)
