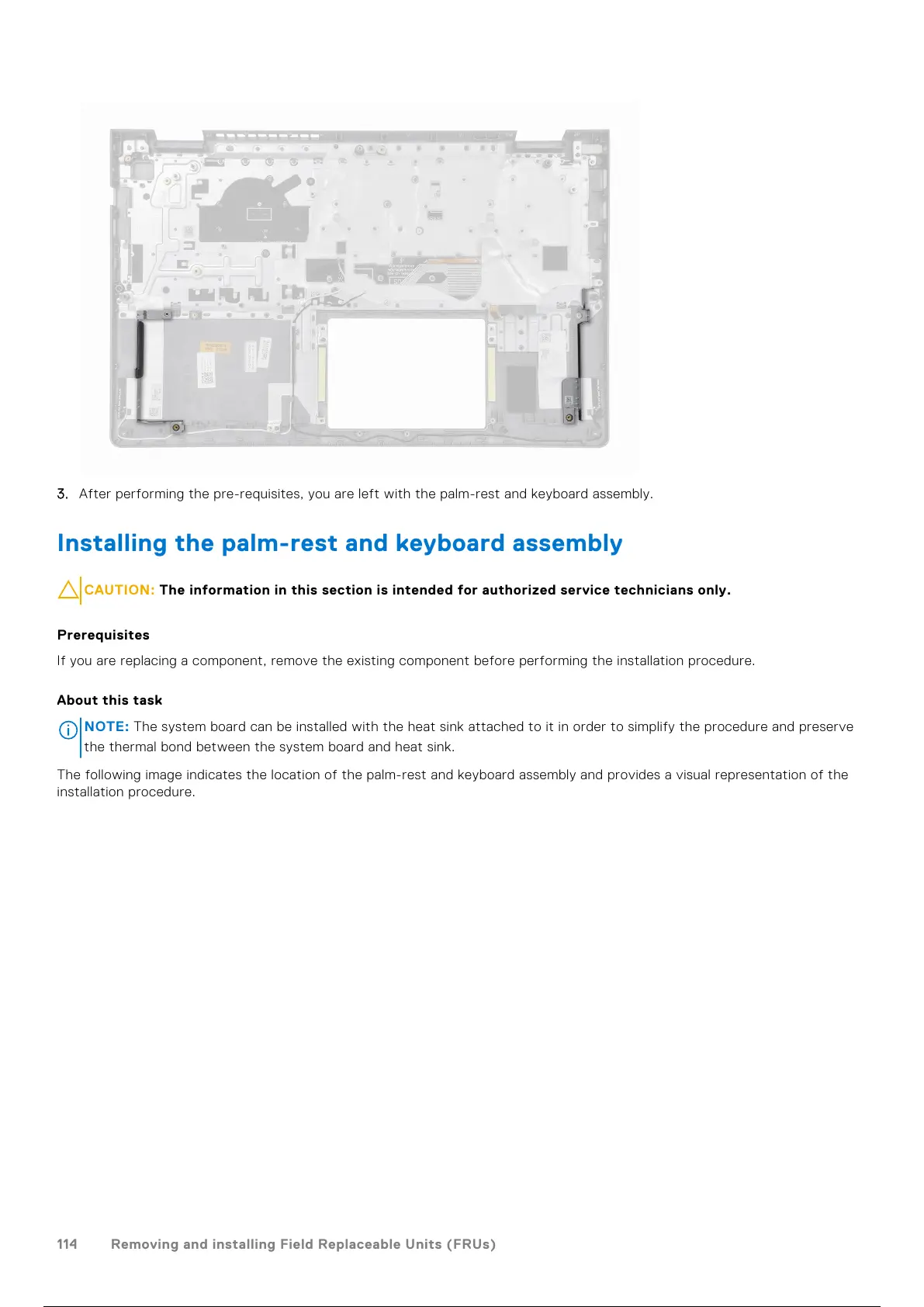

3. After performing the pre-requisites, you are left with the palm-rest and keyboard assembly.
Installing the palm-rest and keyboard assembly
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
NOTE:
The system board can be installed with the heat sink attached to it in order to simplify the procedure and preserve
the thermal bond between the system board and heat sink.
The following image indicates the location of the palm-rest and keyboard assembly and provides a visual representation of the
installation procedure.
114
Removing and installing Field Replaceable Units (FRUs)
