Table 20. Battery specifications(continued)
Description Option one Option two
is 1 hours charge time from 0 to
100% RSOC is 2 hours
Express Charge Boost Charge
Method (Fast Charge for Initial
35%):
● 16 - 45°C target charge time from
0 to 35% RSOC is 20 mins
Express Charge Boost Charge Method
(Fast Charge for Initial 35%):
● 16 - 45°C target charge time from 0 to
35% RSOC is 20 mins
Coin-cell battery
Not supported Not supported
CAUTION: Operating and storage temperature ranges may differ among components, so operating or storing
the device outside these ranges may impact the performance of specific components.
CAUTION: Dell recommends that you charge the battery regularly for optimal power consumption. If your
battery charge is completely depleted, connect the power adapter, turn on your computer, and then restart
your computer to reduce the power consumption.

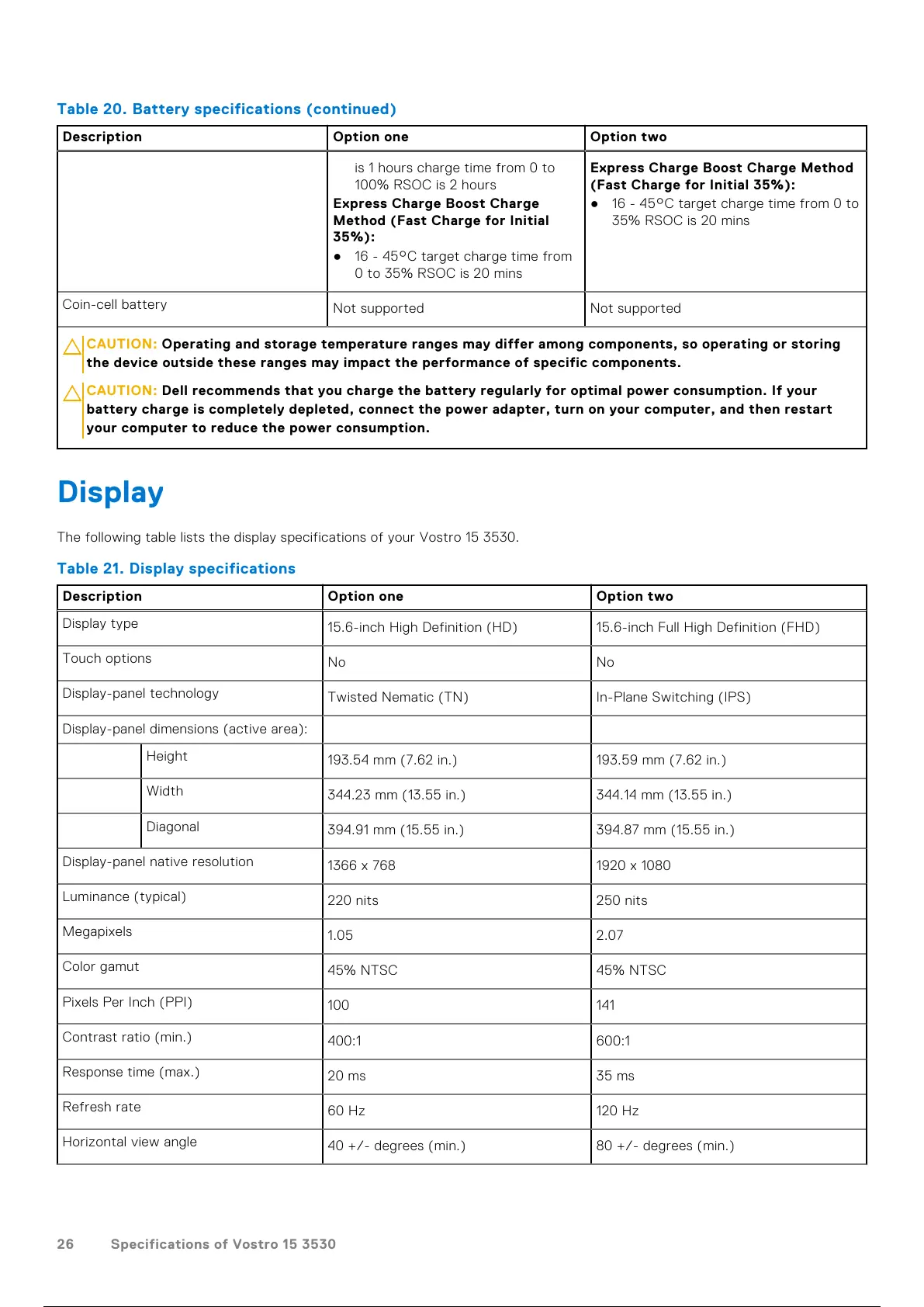

Display
The following table lists the display specifications of your Vostro 15 3530.
Table 21. Display specifications
Description Option one Option two
Display type
15.6-inch High Definition (HD) 15.6-inch Full High Definition (FHD)
Touch options
No No
Display-panel technology
Twisted Nematic (TN) In-Plane Switching (IPS)
Display-panel dimensions (active area):
Height
193.54 mm (7.62 in.) 193.59 mm (7.62 in.)
Width
344.23 mm (13.55 in.) 344.14 mm (13.55 in.)
Diagonal
394.91 mm (15.55 in.) 394.87 mm (15.55 in.)
Display-panel native resolution
1366 x 768 1920 x 1080
Luminance (typical)
220 nits 250 nits
Megapixels
1.05 2.07
Color gamut
45% NTSC 45% NTSC
Pixels Per Inch (PPI)
100 141
Contrast ratio (min.)
400:1 600:1
Response time (max.)
20 ms 35 ms
Refresh rate
60 Hz 120 Hz
Horizontal view angle
40 +/- degrees (min.) 80 +/- degrees (min.)
26 Specifications of Vostro 15 3530
