About this task
NOTE: Ensure that the display hinges are opened to the maximum before replacing the display assembly on the palm-rest
and keyboard assembly.

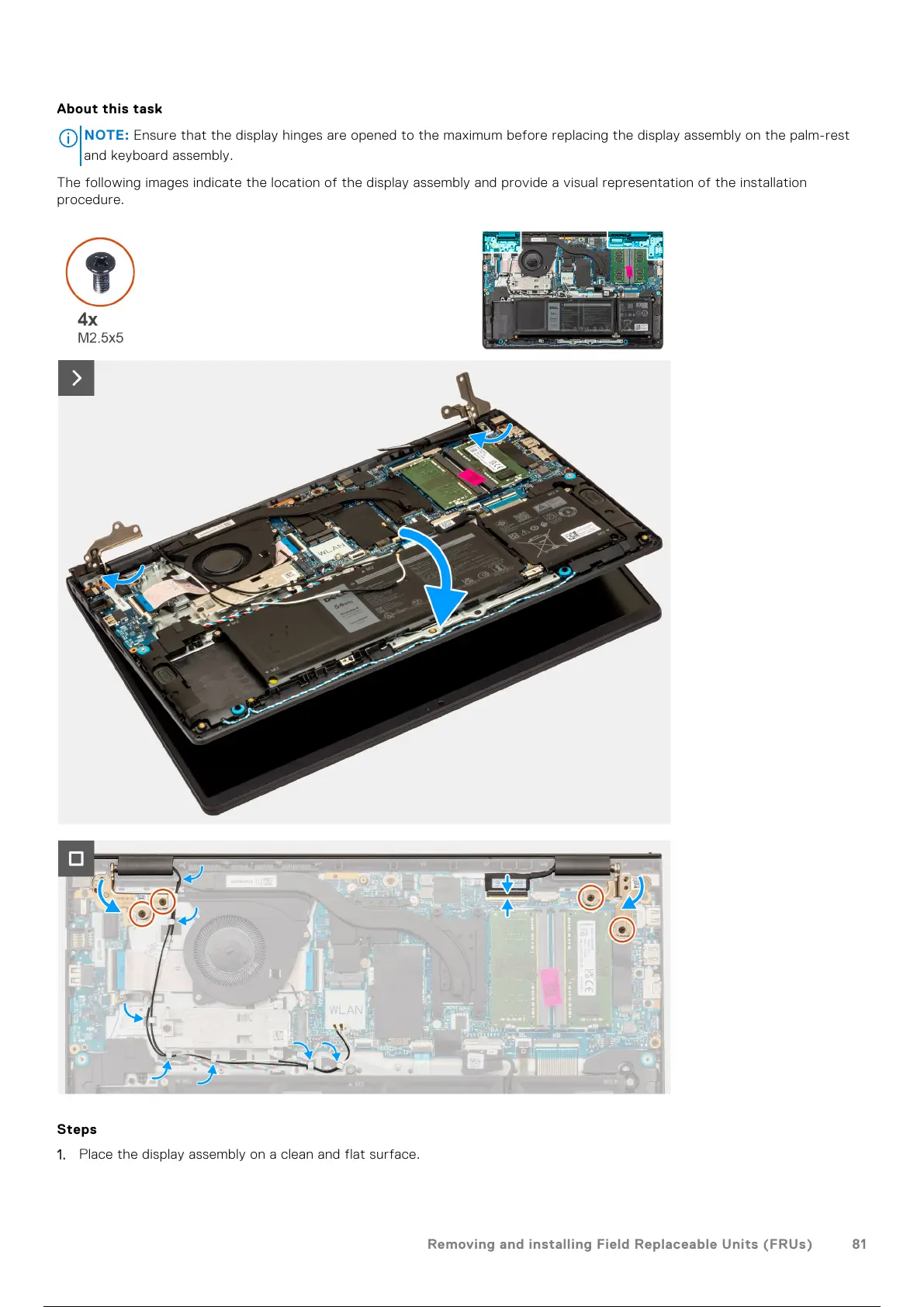

The following images indicate the location of the display assembly and provide a visual representation of the installation
procedure.
Steps
1. Place the display assembly on a clean and flat surface.
Removing and installing Field Replaceable Units (FRUs)
81
