Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the wireless card.
4. Remove the display assembly.
5. Remove the display hinge caps.
6. Remove the display bezel.
About this task
NOTE: This procedure applies only to computers with a plastic chassis.

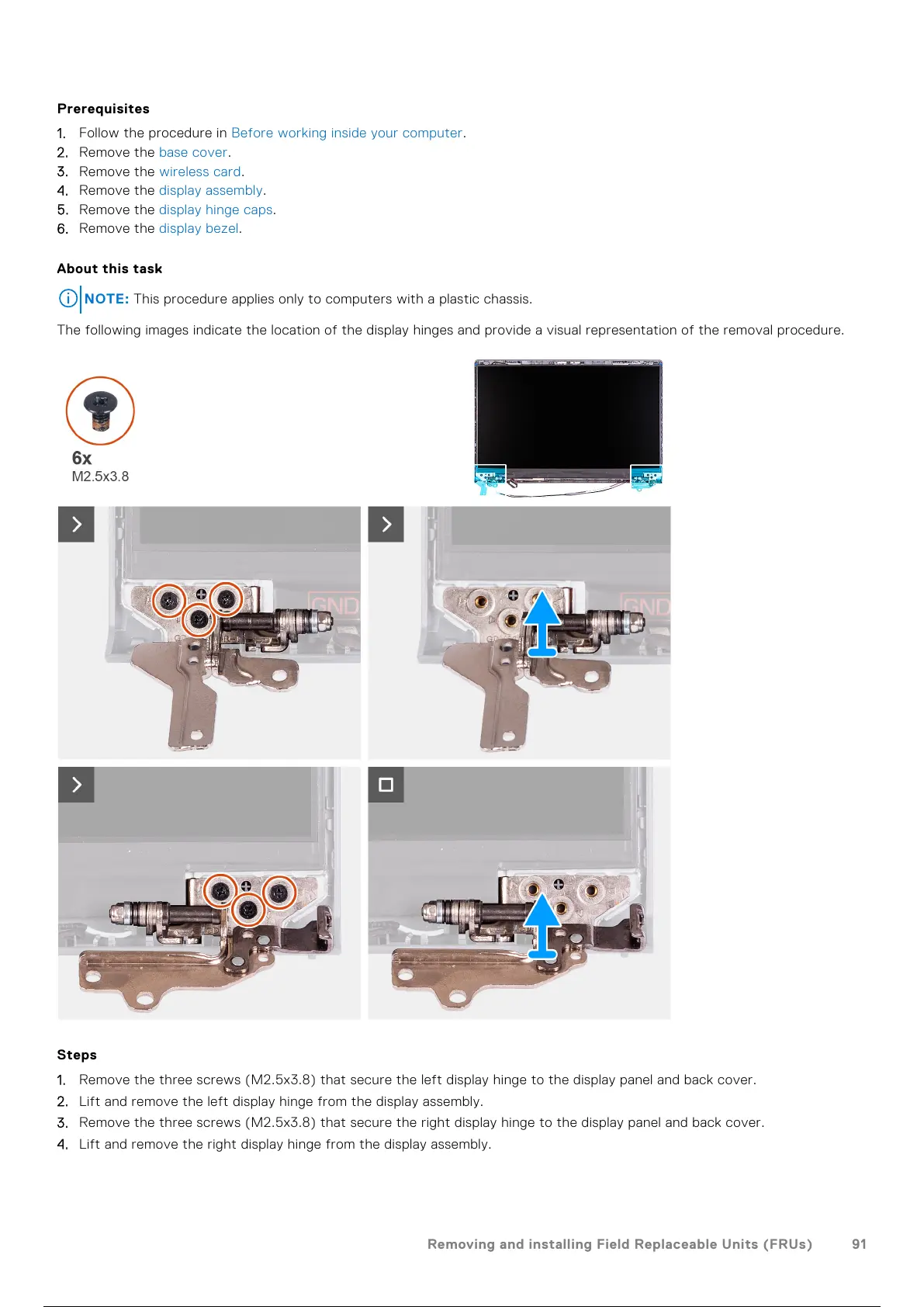

The following images indicate the location of the display hinges and provide a visual representation of the removal procedure.
Steps
1. Remove the three screws (M2.5x3.8) that secure the left display hinge to the display panel and back cover.
2. Lift and remove the left display hinge from the display assembly.
3. Remove the three screws (M2.5x3.8) that secure the right display hinge to the display panel and back cover.
4. Lift and remove the right display hinge from the display assembly.
