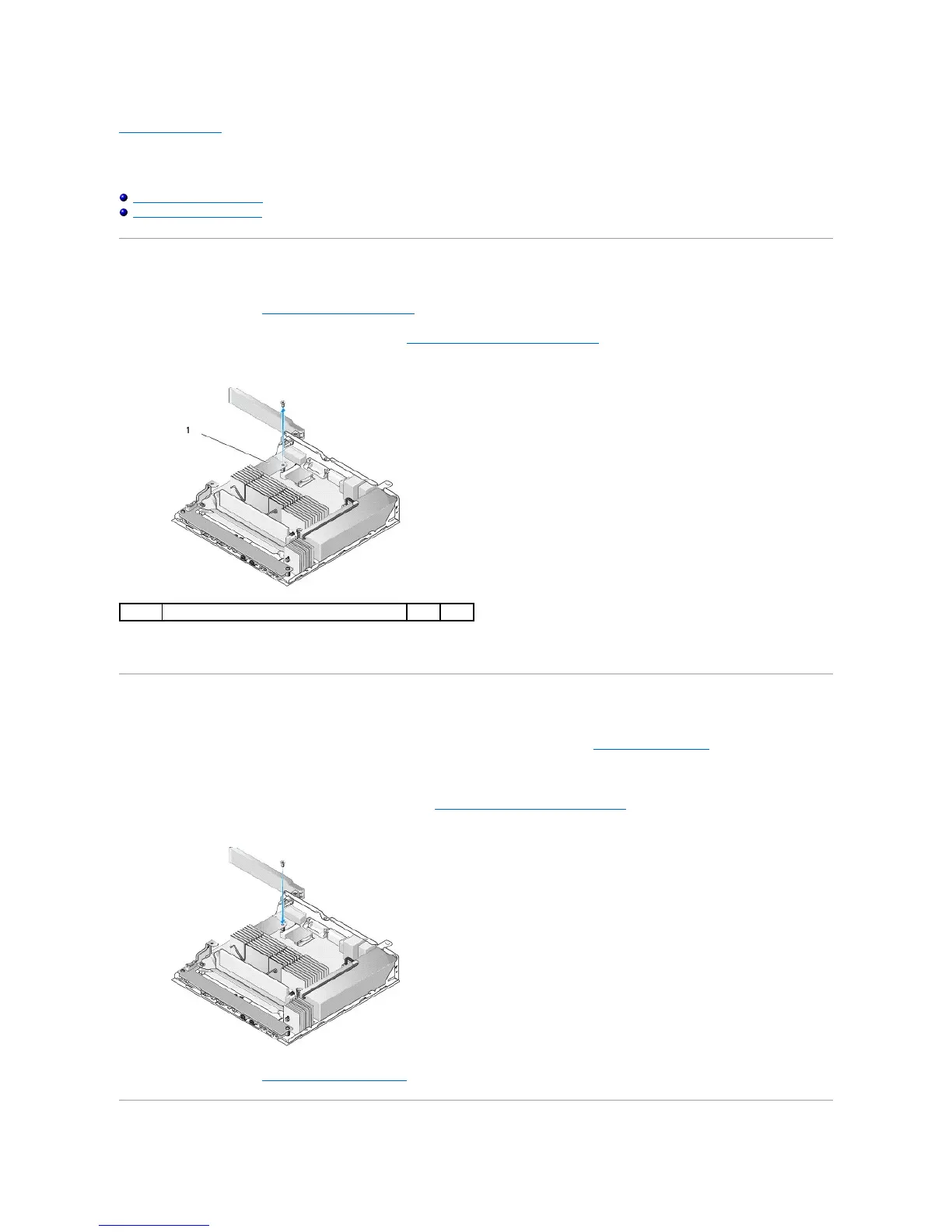

 NVRAM Module
Dell™OptiPlex™FX160/160ServiceManual
Removing the NVRAM Module
Replacing the NVRAM Module
Removing the NVRAM Module

1. Perform the procedure in Before Working on Your Computer.

2. Remove the hard drive bracket assembly, if installed (see Removing the Hard Drive Bracket Assembly).

3. Remove the screw that secures the NVRAM module to the system board with a Phillips #1 screwdriver.

4. Lift the NVRAM module straight up from the system board.
Replacing the NVRAM Module

1. Align the NVRAM module connectors with the connectors on the system board and push down (see System Board Connectors).

2. Secure the NVRAM module to the system board with the screw.

3. Replace the hard drive bracket assembly if it was removed (see Replacing the Hard Drive Bracket Assembly).
.

4. Perform the procedure in After Working on Your Computer.
1
NVRAM module


