6. Follow the procedures in
After Working Inside Your Computer
.
Removing the Hard Drive
1. Follow the procedures in
Before Working Inside Your Computer
.
2. Remove the:
a) cover
b) optical drive
c) drive cage

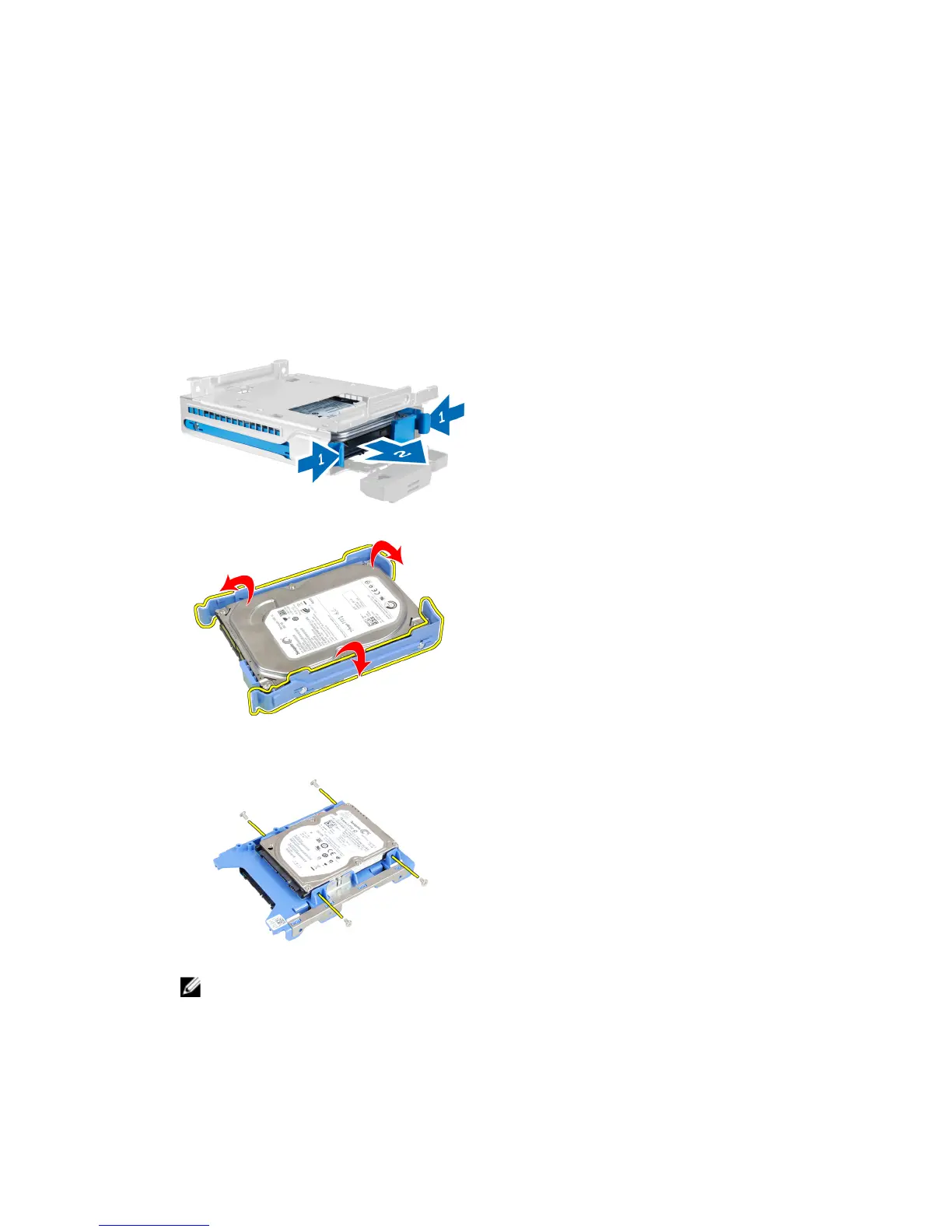

3. Perform the following steps as shown in the illustration: and
a) Press the retention clips inwards [1].
b) Slide the hard-drive bracket out from the drive cage. [2].
4. Flex the hard-drive bracket and remove the hard drive from the bracket.
5. Remove the screws that secure the mini hard drive to the hard-drive bracket and remove the hard
drive from its bracket.
NOTE: Perform step 5 only if you have a mini hard drive.
17
