Dell OptiPlex 3020 - Installing the System Board

Installing the System Board

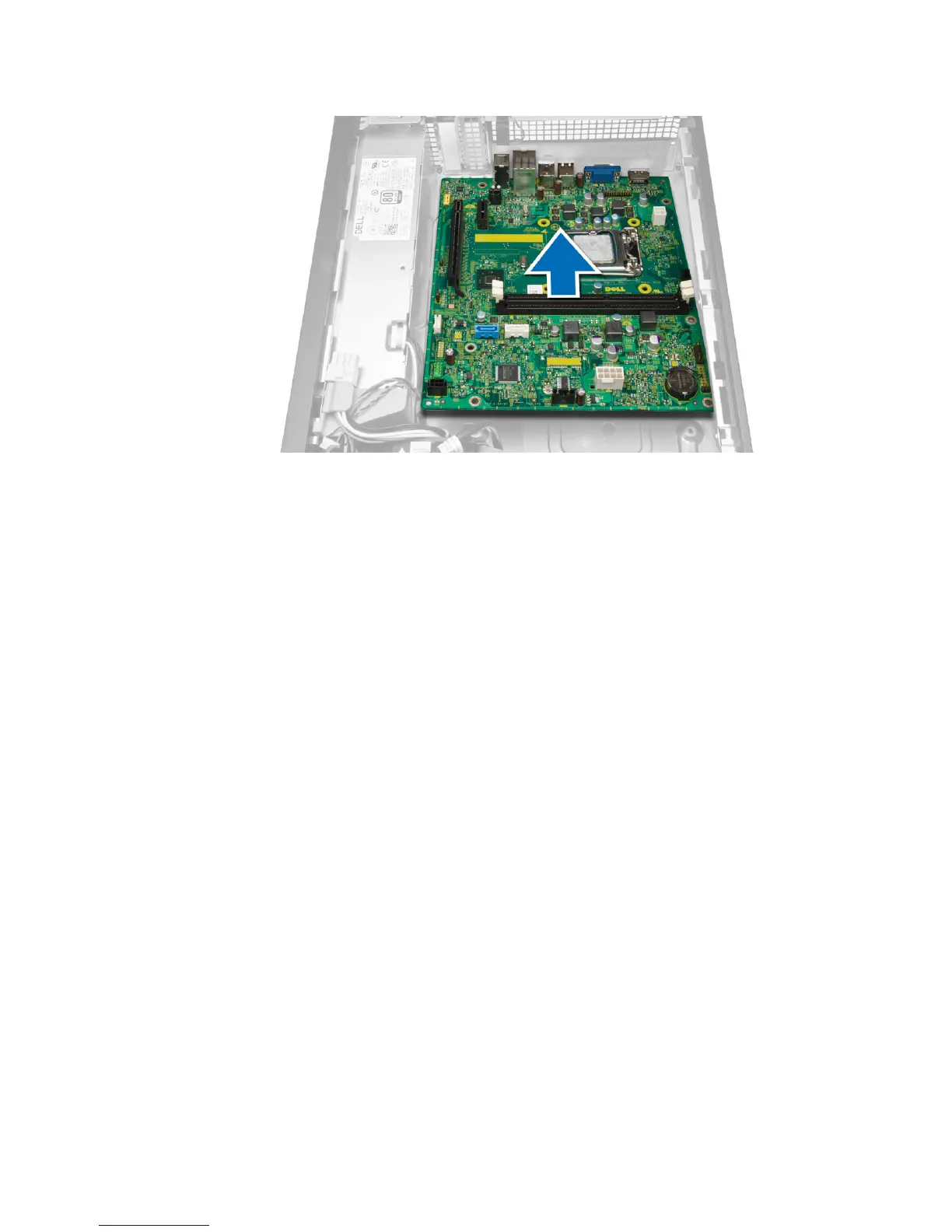

1. Align the system board to the port connectors on the rear of the chassis and place the system
board in the chassis.
2. Tighten the screws securing the system board to the chassis.
3. Connect the cables to the system board.
4. Install the:
a) power supply
b) expansion card(s)
c) heat sink assembly
d) memory
e) drive cage
f) optical drive
g) front bezel
h) cover
5. Follow the procedures in After Working Inside Your Computer .
