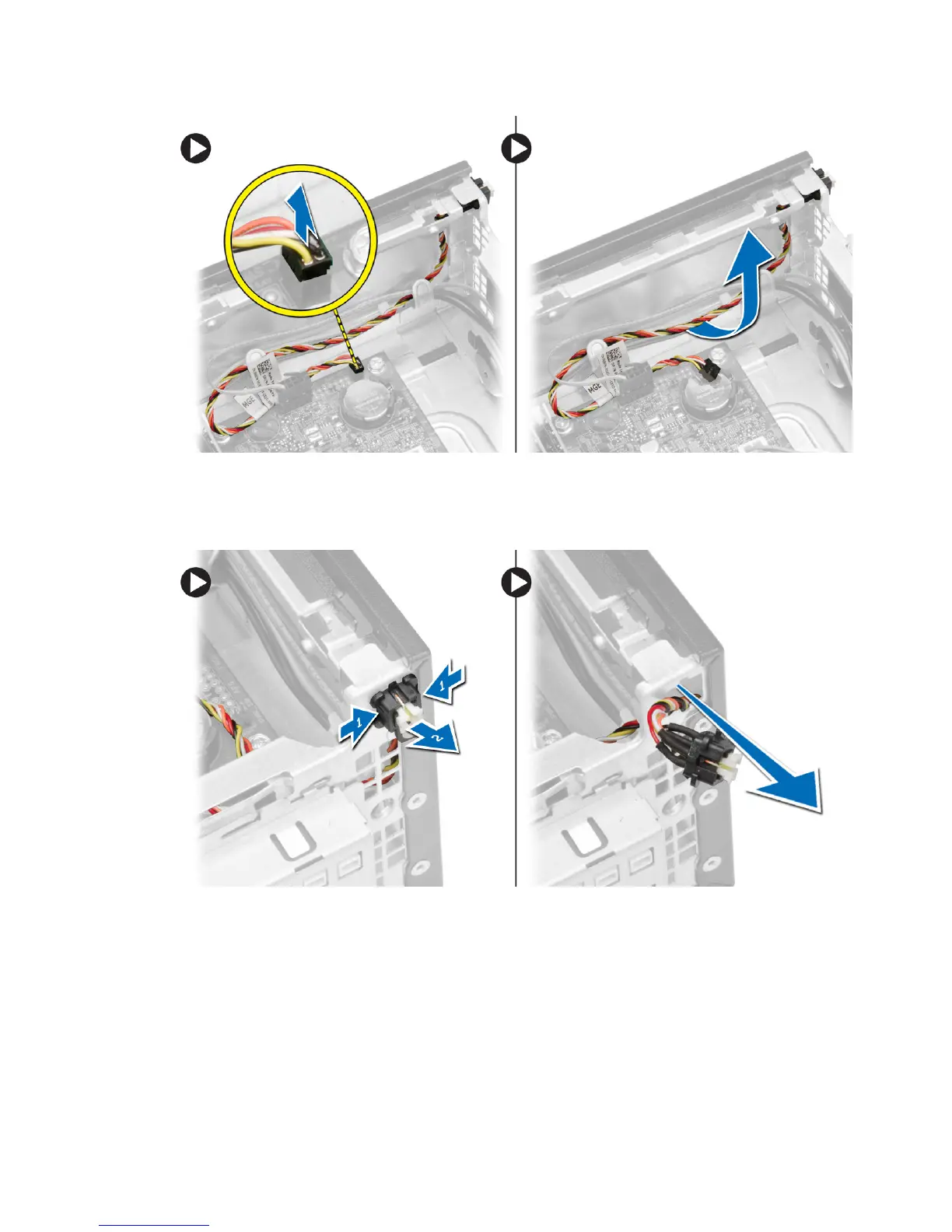

4. Perform the following steps as shown in the illustration:
a) Press the clips on both side of the power switch [1].
b) Release it from the chassis [2].
c) Remove the power switch along with its cable from the computer
Installing the Power Switch
1. Slide the power switch in through the front of the computer.
2. Connect the power-switch cable to the system board.
3. Install the:
a) drive cage
b) optical drive
22
