Dell OptiPlex 3020 - Removing the System Board

Removing the System Board
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the:
a) cover
b) front bezel
c) optical drive
d) drive cage
e) memory
f) heat sink assembly
g) expansion card(s)
h) power supply

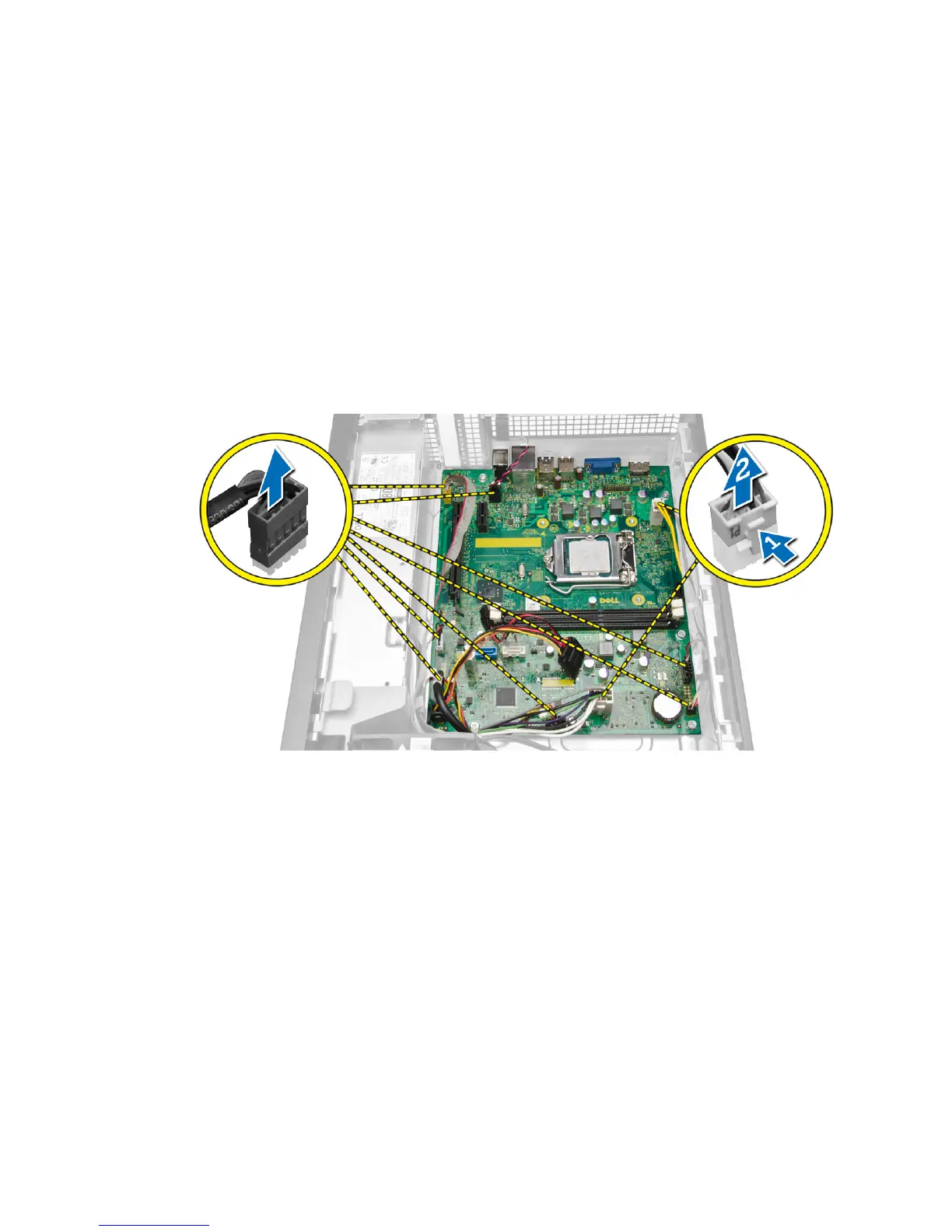

3. Disconnect all the cables connected to the system board, and move the cables away from the
chassis.
4. Turn the hex screw counter clockwise and remove from the system board
