Dell OptiPlex 3020 - Removing the I;O Panel

c) front bezel
d) cover
4. Follow the procedures in After Working Inside Your Computer .
Removing the I/O Panel
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the:
a) cover
b) optical drive
c) drive cage
d) front bezel

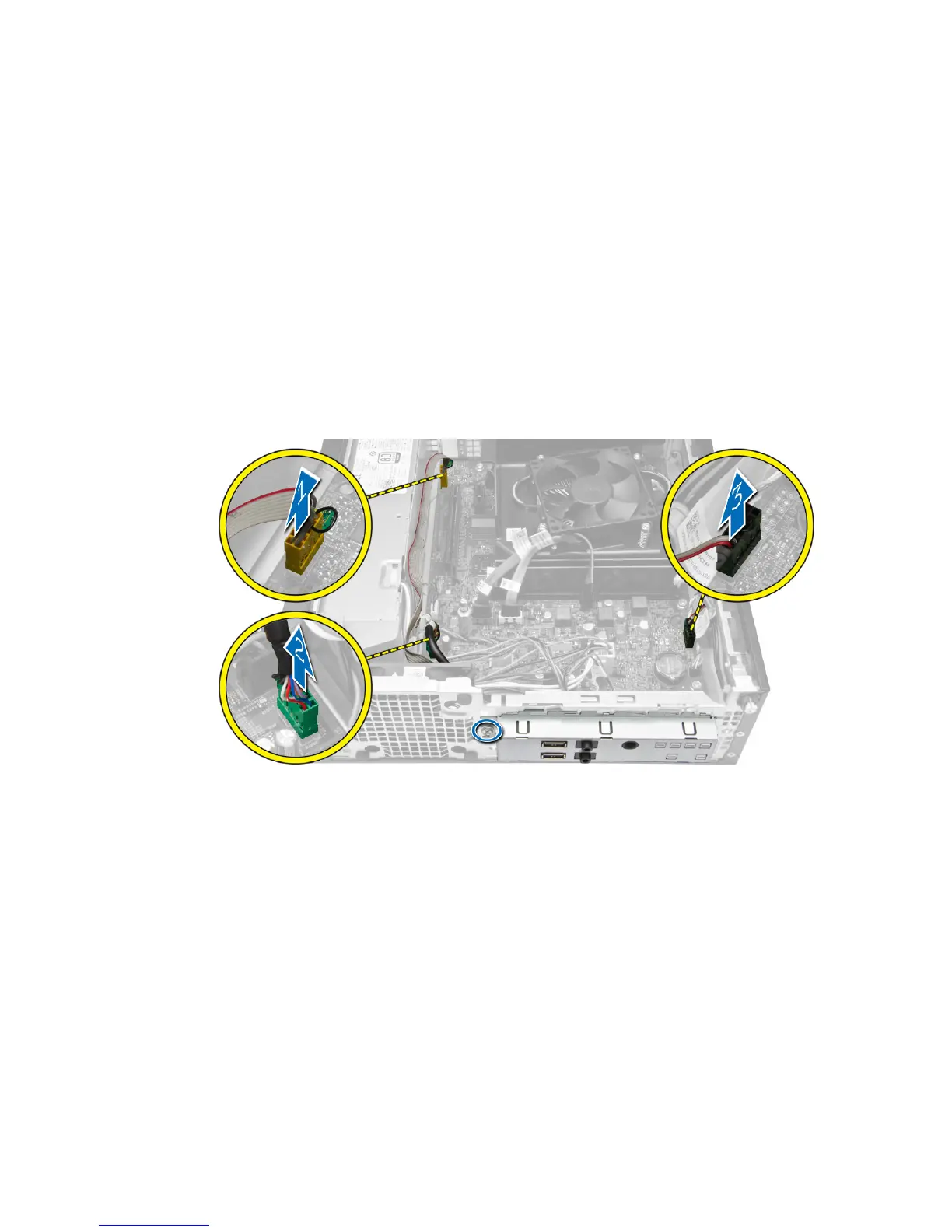

3. Perform the following steps as shown in the illustration:
a) Disconnect the I/O cable the computer [1].
b) Disconnect the audio cable the computer [2].
c) Disconnect the HDD LED cable the computer [3].
4. Perform the following steps as shown in the illustration:
a) Remove the screw that secures the I/O panel to the chassis. [1].
b) Slide the I/O panel to release and remove it from the computer [2].
23
