Dell OptiPlex 3020 - Page 26

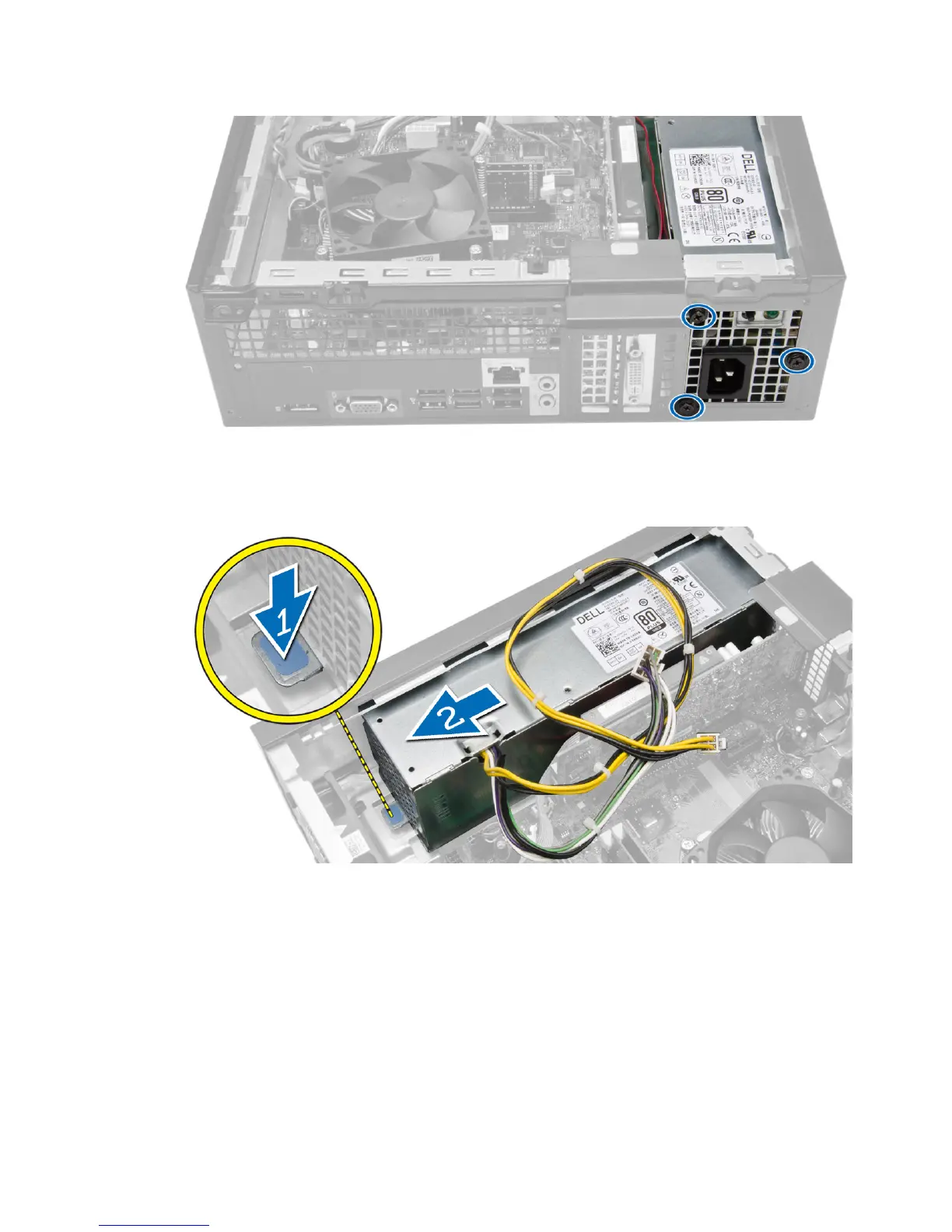

6. Perform the following steps as shown in the illustration:
a) Press the latch downwards to release the power supply unit [1].
b) Slide the power supply unit from the computer [2].
7. Lift the power supply out of the computer.
26
