13. Memory slots
14. SD card reader connector
15. Power switch connector
16. M.2 SSD connector
17. SATA 0 connector (blue color)
18. SATA 2 connector (white color)
19. Internal speaker connector
20. SATA 3 connector (black color)
21. SATA 1 connector (black color)
22. System power connector (ATX)
23. SATA power connector
24. M.2 WLAN connector
25. Coin cell battery
26. Clear CMOS/Password/Service Mode Jumper
Side cover

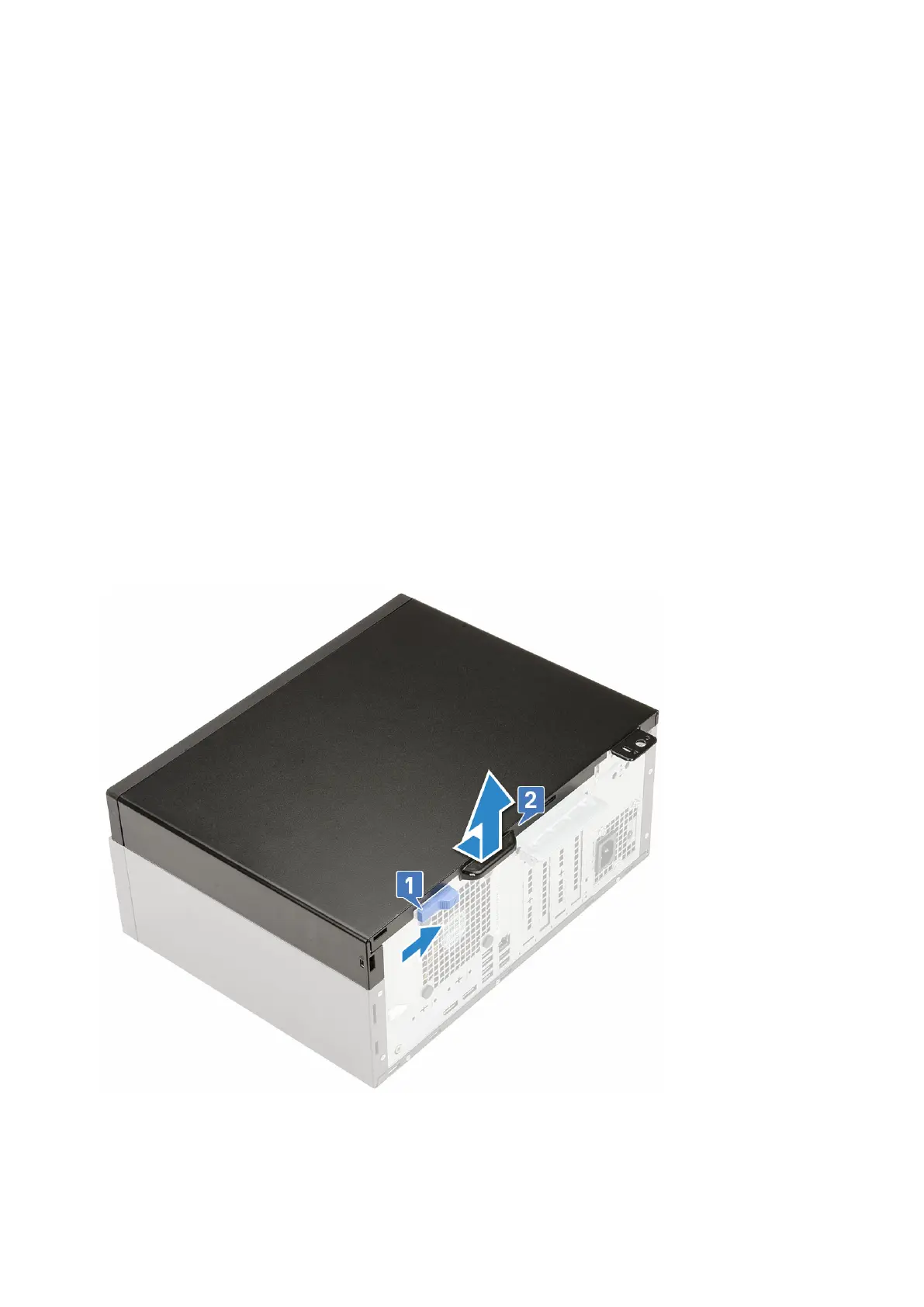

Removing side cover
1. Follow the procedure in Before working inside your computer.
2. To remove the cover:
a. Slide the release latch to release the cover from the system [1].
b. Slide the cover towards the back of the system and lift it from the system [2].
Removing and installing components
17
