Dell OptiPlex 5060 Tower - Installing the 3.5-Inch Hard Drive into the Hard Drive Bracket; Installing 3.5-Inch Hard Drive Assembly

a. Side cover
b. Front bezel
c. 3.5-inch HDD assembly

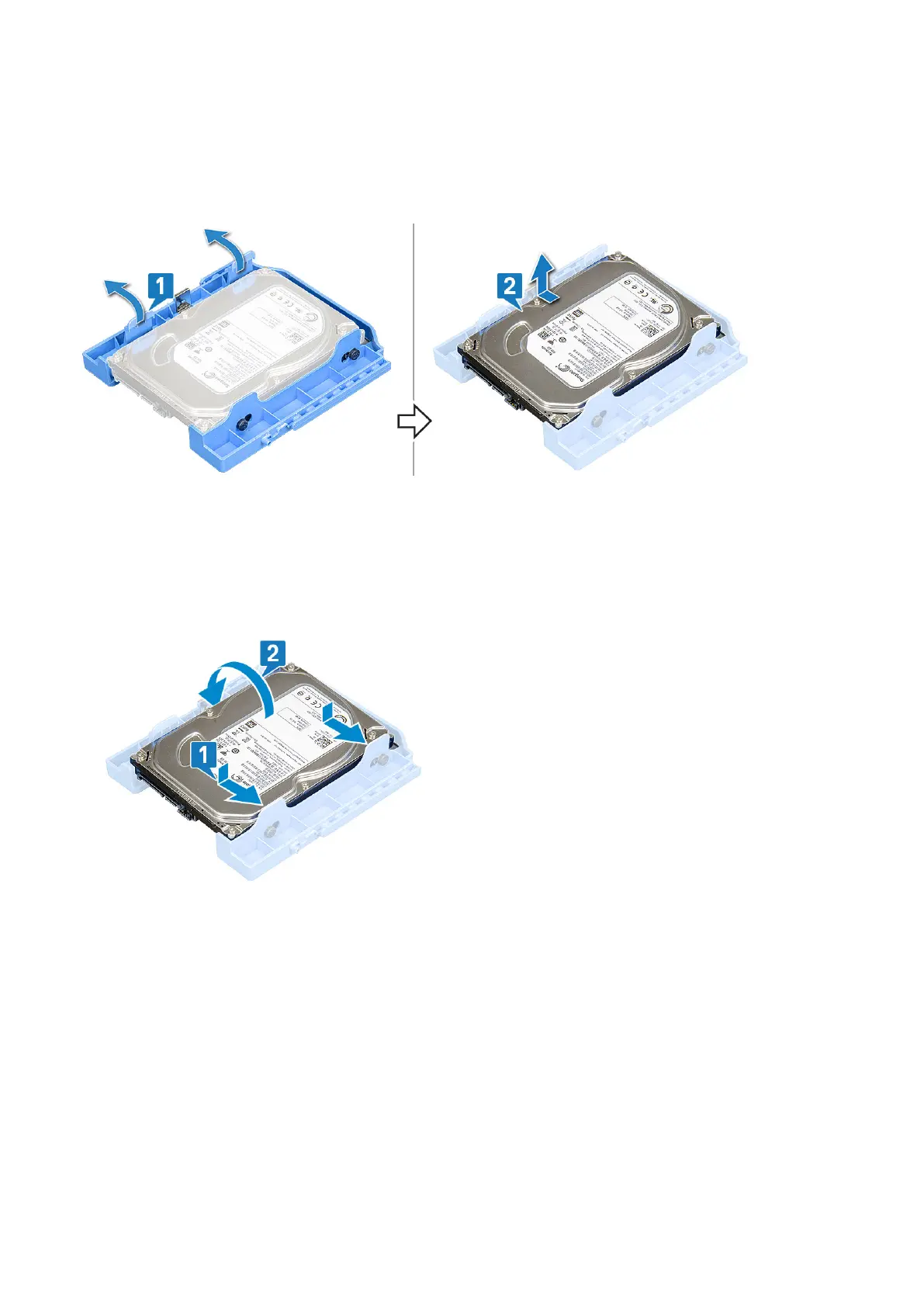

3. To remove the hard drive :
a. Pull one side of the hard drive bracket to disengage the pins on the bracket from the slots on the hard drive [1].
b. Lift the hard drive out of the hard drive bracket [2].
Installing the 3.5–inch hard drive into the hard drive bracket
1. To install the hard drive:
a. Align the hard drive to the side of the hard drive bracket, and pull the other end tabs to insert the pins on the bracket
into the hard drive [1].
b. Insert the hard drive into the hard drive bracket until it clicks into place [2].
2. Install the:
a. 3.5-inch hard drive assembly
b. Front bezel
c. Side cover
3. Follow the procedure in After working inside your computer.
Installing 3.5–inch hard drive assembly
1. Insert the hard drive assembly into the slot on the system until it clicks into place [1].
2. Replace the HDD filler bracket [2].
24
Removing and installing components
