b. Lift the heat sink away from the computer [2].
Installing heat sink

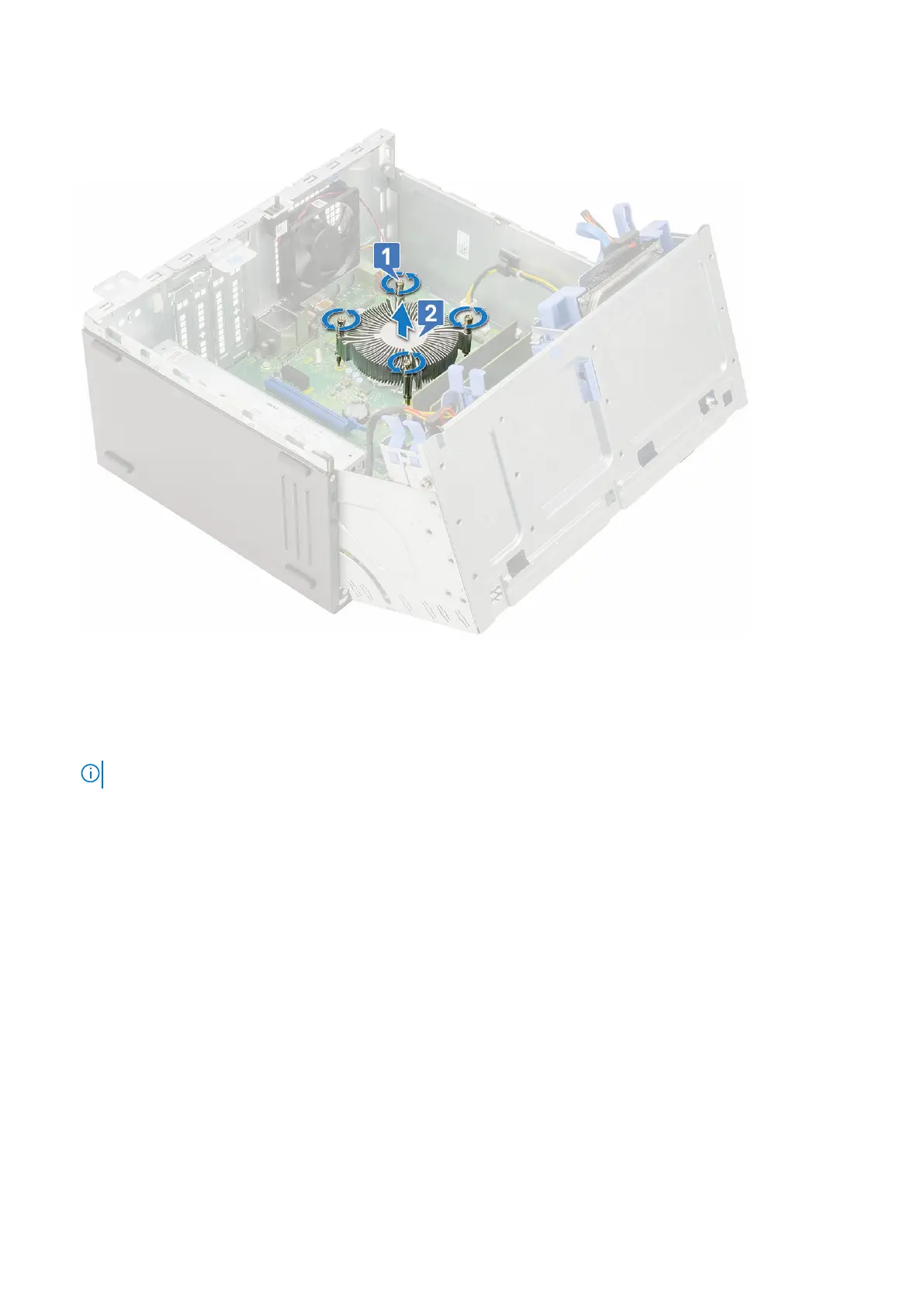

1. Align the screws of the heat sink with the holders on the system board and place the heat sink on the processor [1].
2. Tighten the captive screws to secure the heat sink to the system board [2].
NOTE:
Tighten the screws in a sequential order (1,2,3,4) as printed on the system board.
