Dell OptiPlex 5060 Tower - Page 63

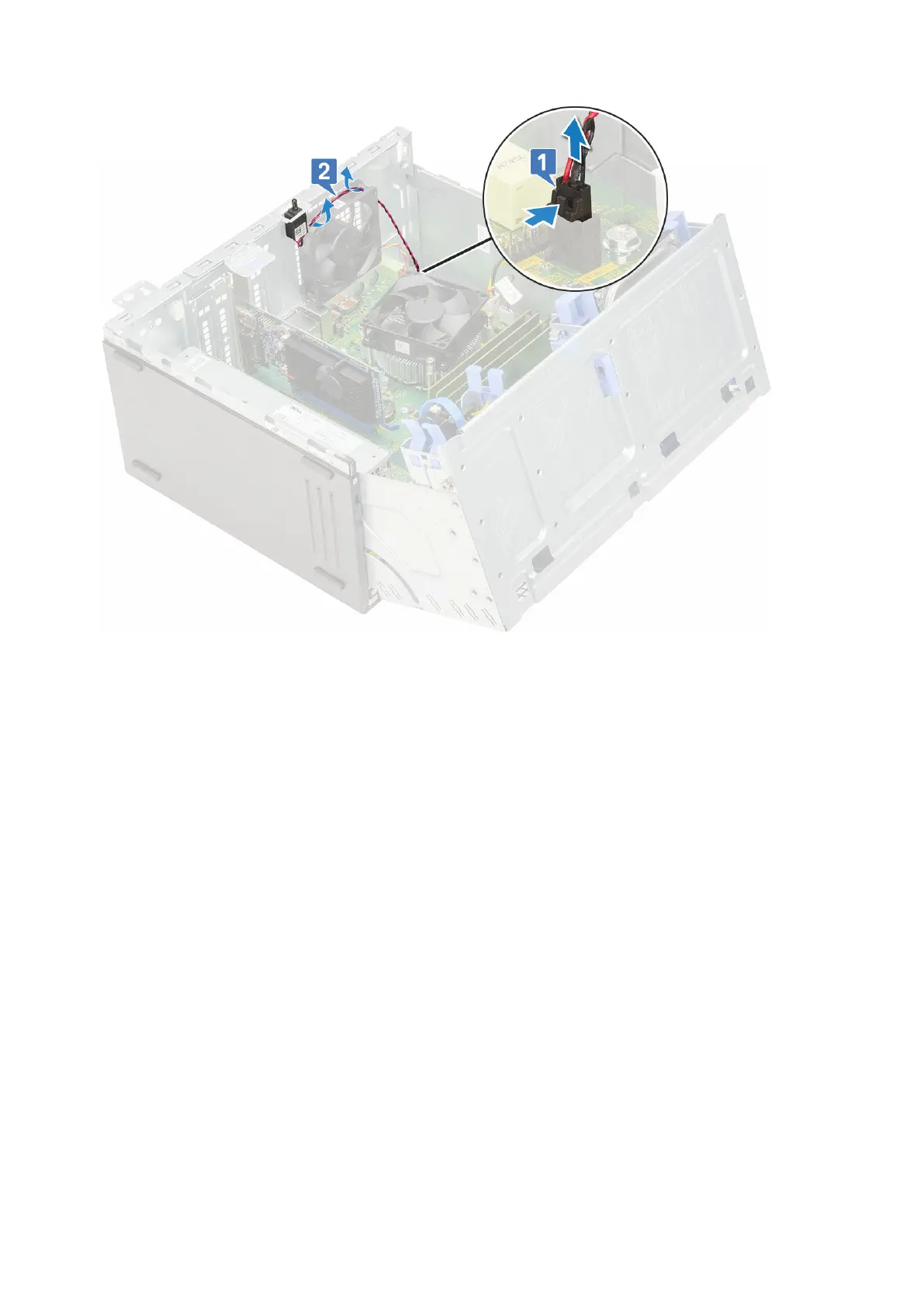

c. Disconnect the system fan cable from the connector on the system board [1].
d. Stretch the grommets securing the fan to the computer to ease the removal of the fan [2].
e. Slide the system fan out of the computer [3].
Removing and installing components
63
