Steps
1. Disconnect the hard-drive data and power cables from the connectors on the 2.5-inch hard-drive module.
2. Press the release tabs on both the sides of the hard-drive bracket to release it from the slots on the computer chassis.
3. Tilt the hard-drive assembly slightly at an angle.
4. Lift the hard-drive assembly from the computer.
NOTE: Note the orientation of the hard drive so that you can replace it correctly.
Installing the 2.5-inch hard-drive assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

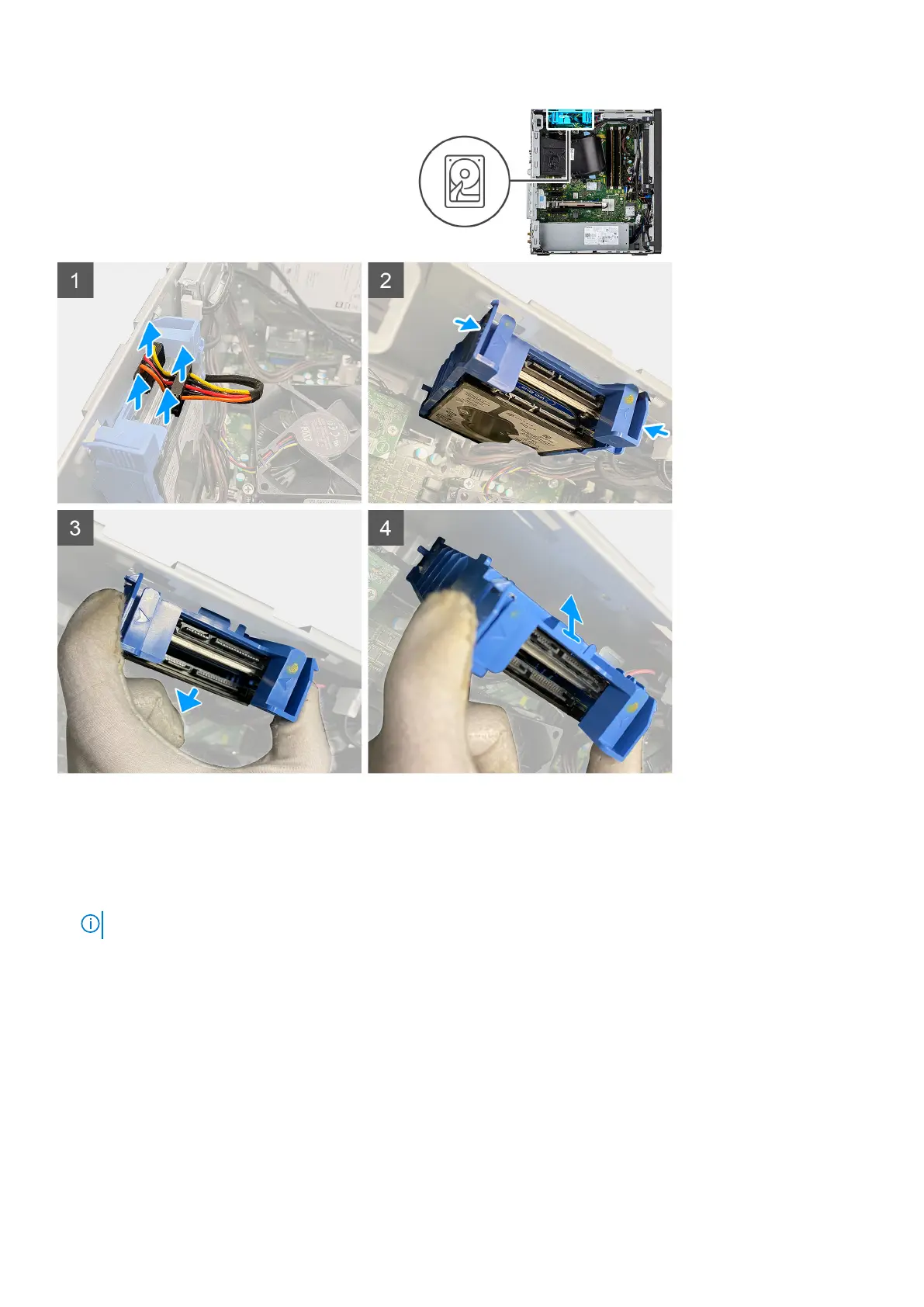

The following image indicates the location of the 2.5-inch hard-drive assembly and provides a visual representation of the
installation procedure.
Removing and installing components
19
