Installing the graphics card
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

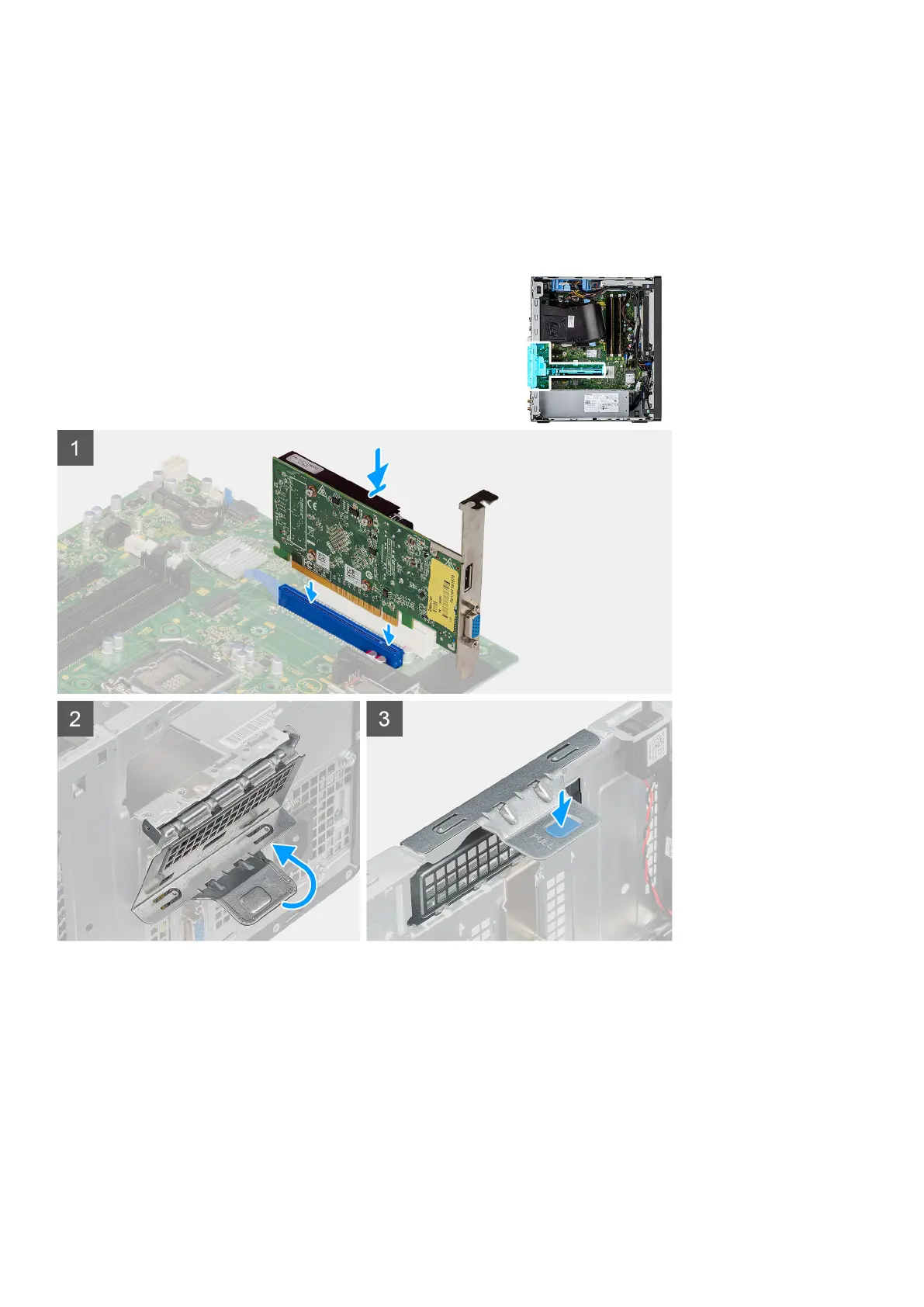

The following images indicate the location of the graphics card and provide a visual representation of the installation procedure.
Steps
1. Align the graphics card with the PCI-Express card connector on the system board.
2. Using the alignment post, connect the graphics card in the connector and press down firmly. Ensure that the card is firmly
seated.
3. Lift the pull tab to close the PCIe door.
Next steps
1. Install the side cover.
2. Follow the procedure in after working inside your computer.
