About this task

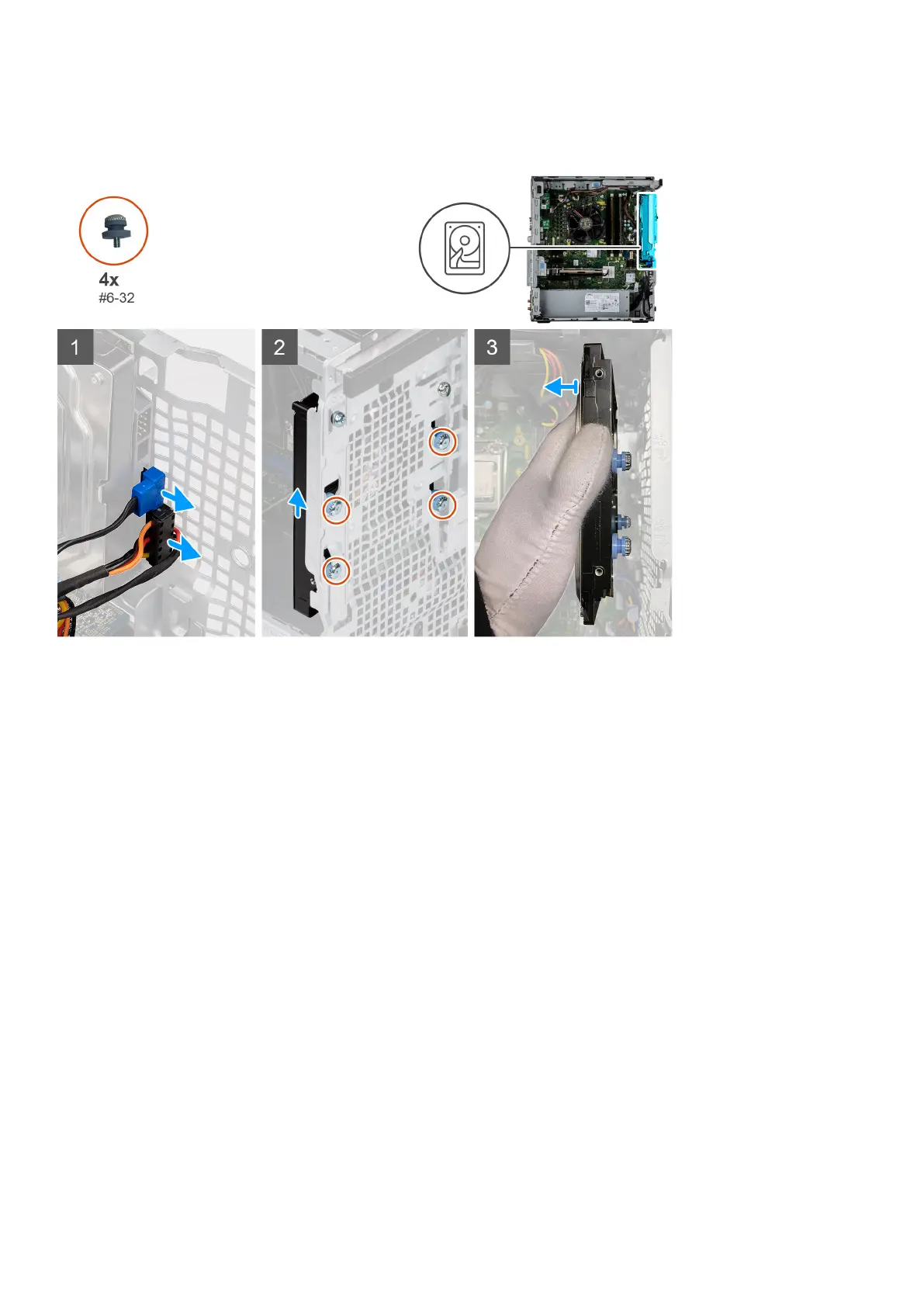

The following images indicate the location of the 3.5-inch hard-disk drive assembly and provide a visual representation of the
removal procedure.
Steps
1. Disconnect the data and power cables from the 3.5-inch hard-disk drive module.
2. Remove the fours (#6-32) screws that secure the hard-disk drive to the chassis.
3. Slide the hard-disk drive away from the chassis.
Installing the 3.5-inch hard-disk drive assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the 3.5-inch hard-disk drive assembly and provides a visual representation of the
installation procedure.
