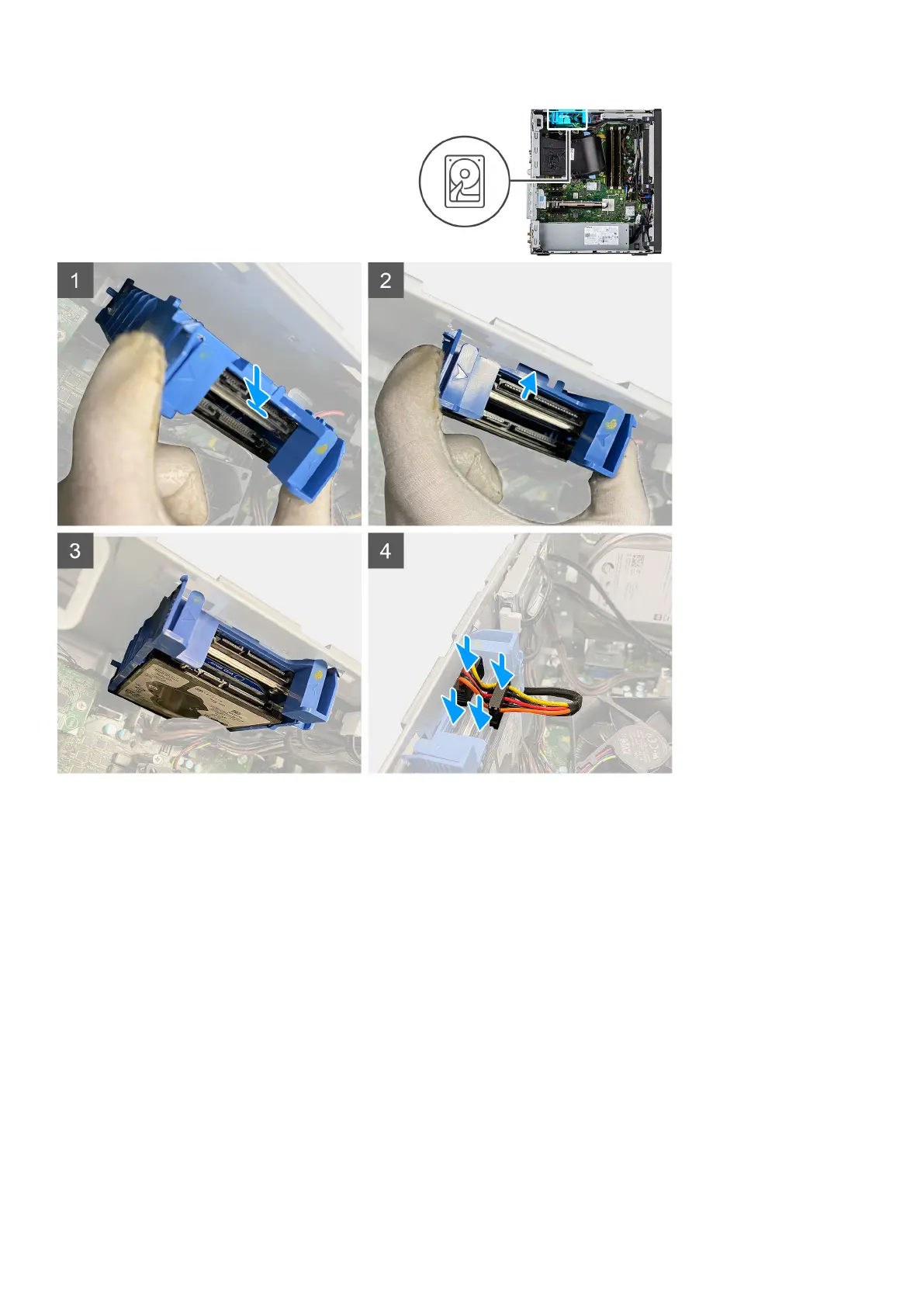

Steps
1. Align the hard-drive assembly at an angle to the slot on the computer.
2. Press the release tabs on the hard-drive bracket and slightly align back to insert the hard-drive assembly to the slot on the
computer chassis.
3. Connect the hard-drive data and power cables to the connectors on the 2.5-inch hard-drive module.
Next steps
1. Install the side cover.
2. Follow the procedure in after working inside your computer.
3.5 in. hard-drive assembly
Removing the 3.5-inch hard-disk drive assembly
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
20
Removing and installing components
