Installing The WLAN Card
1. Insert the WLAN card into the connector on the system board and press down until it is securely in place. Fix the
latch.
2. Place the antenna puck on the connector and tighten the screws that secure it to the computer.
3. Install the cover.
4. Follow the procedures in
After Working Inside Your Computer
.
Removing The Front Bezel
1. Follow the procedures in
Before Working Inside Your Computer
.
2. Remove the cover.

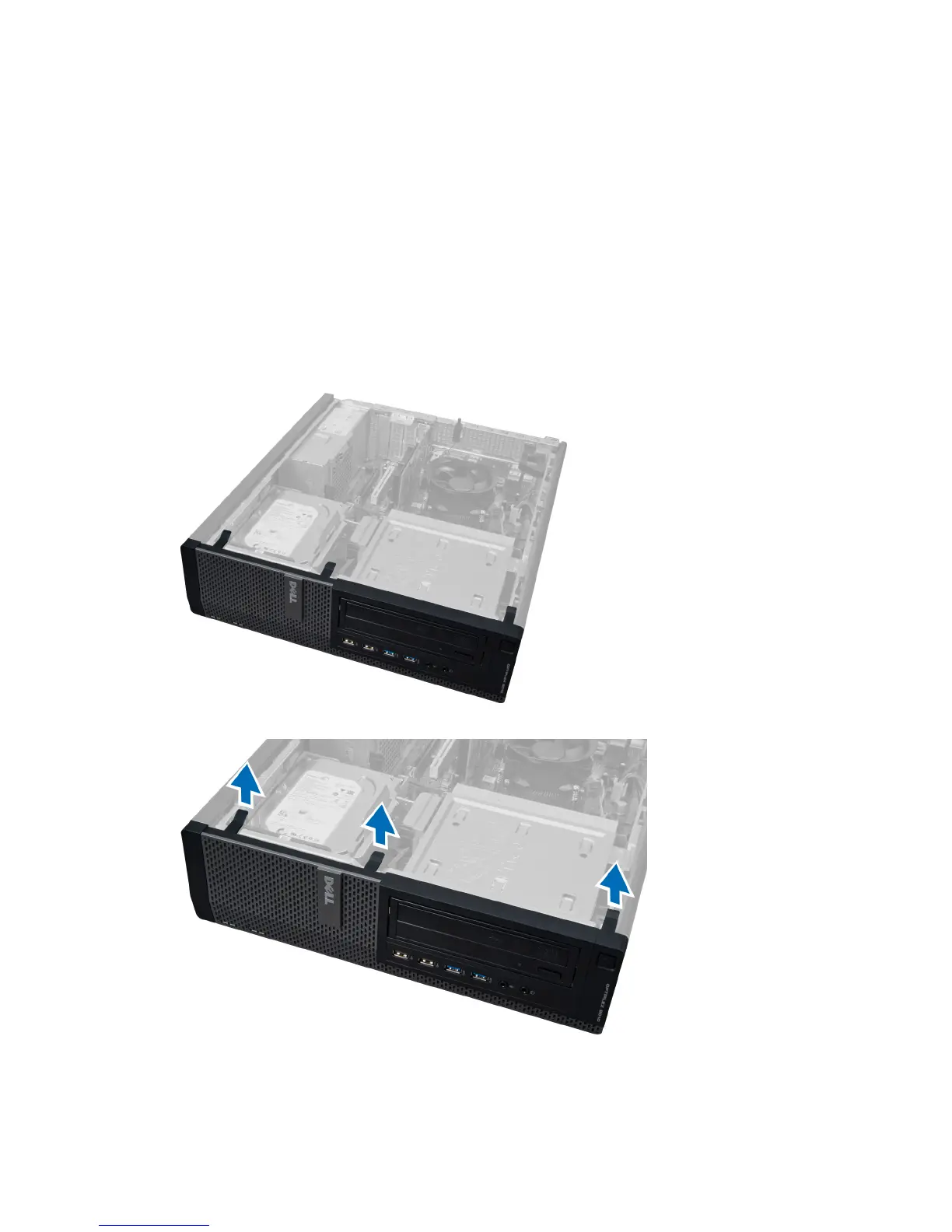

3. Gently pry the front panel retention clips away from the chassis located at the side edge of front bezel.
4. Rotate the front panel away from the chassis to release the hooks on the opposite edge of the panel.
10
