Installing The Intrusion Switch
1. Slide the intrusion switch toward the chassis top and secure it to place.
2. Connect the intrusion cable to the system board.
3. Install the cover.
4. Follow the procedures in
After Working Inside Your Computer
.
Removing The Wireless Local Area Network (WLAN) Card
1. Follow the procedures in
Before Working Inside Your Computer
.
2. Remove the cover.

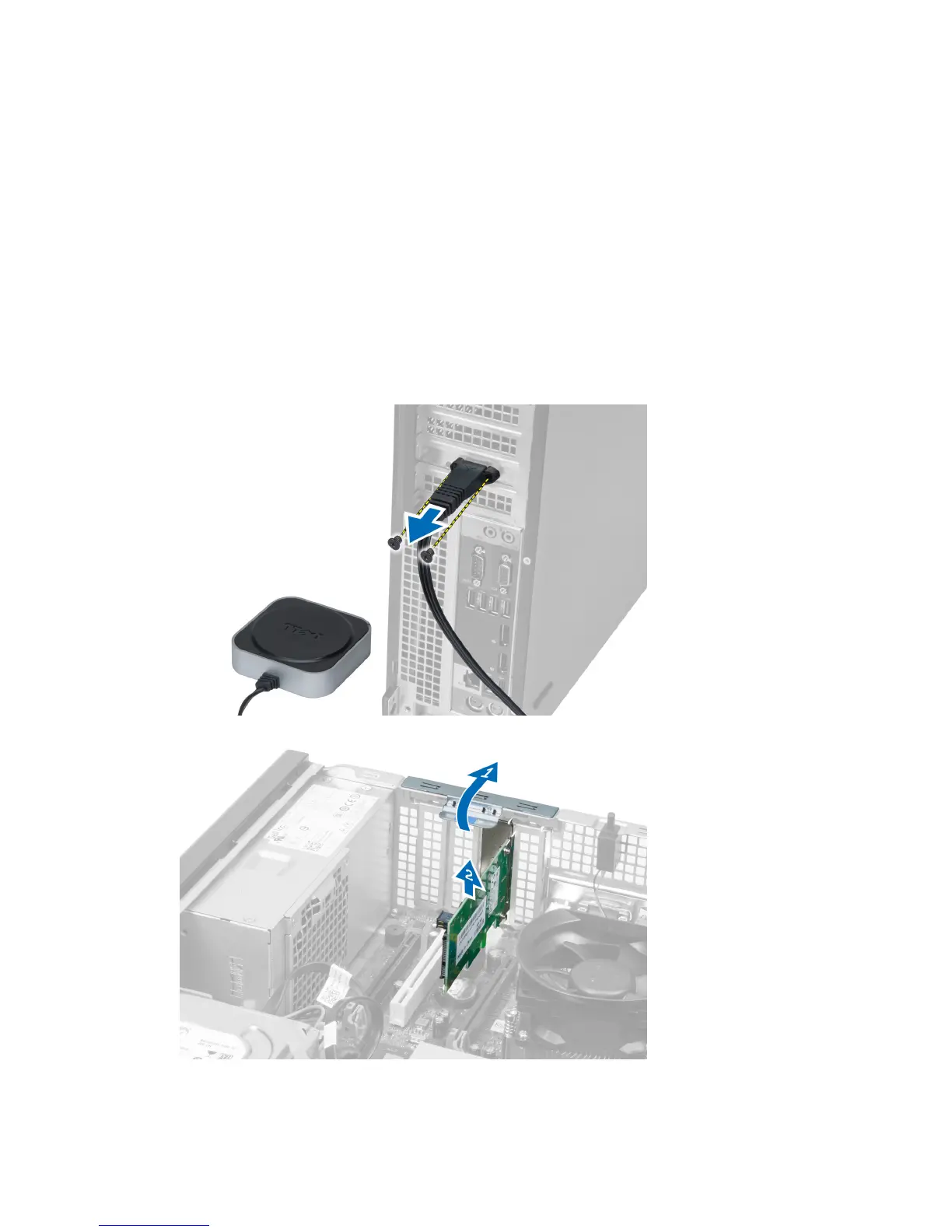

3. Remove the screws that secure the antenna puck to the connector on the computer. Pull the antenna puck from the
computer.
4. Lift the latch upwards. Lift and remove the WLAN card from the connector on the system board.
9
