Dell OptiPlex 7010 - Removing the Intrusion Switch

Removing The Intrusion Switch
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the cover.

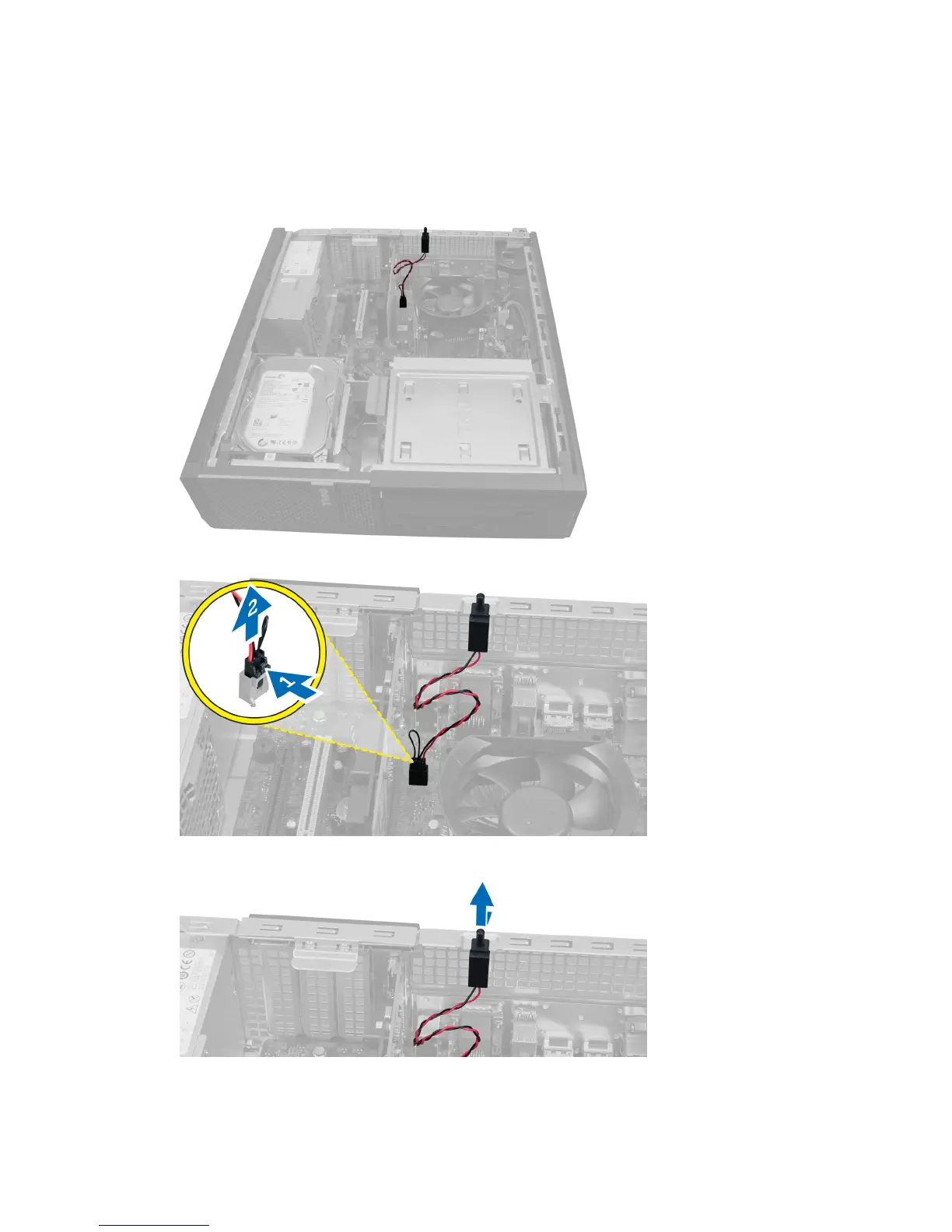

3. Press the clip inwards to release and gently pull the intrusion cable from system board.
4. Slide the intrusion switch outward and remove it from the chassis.
