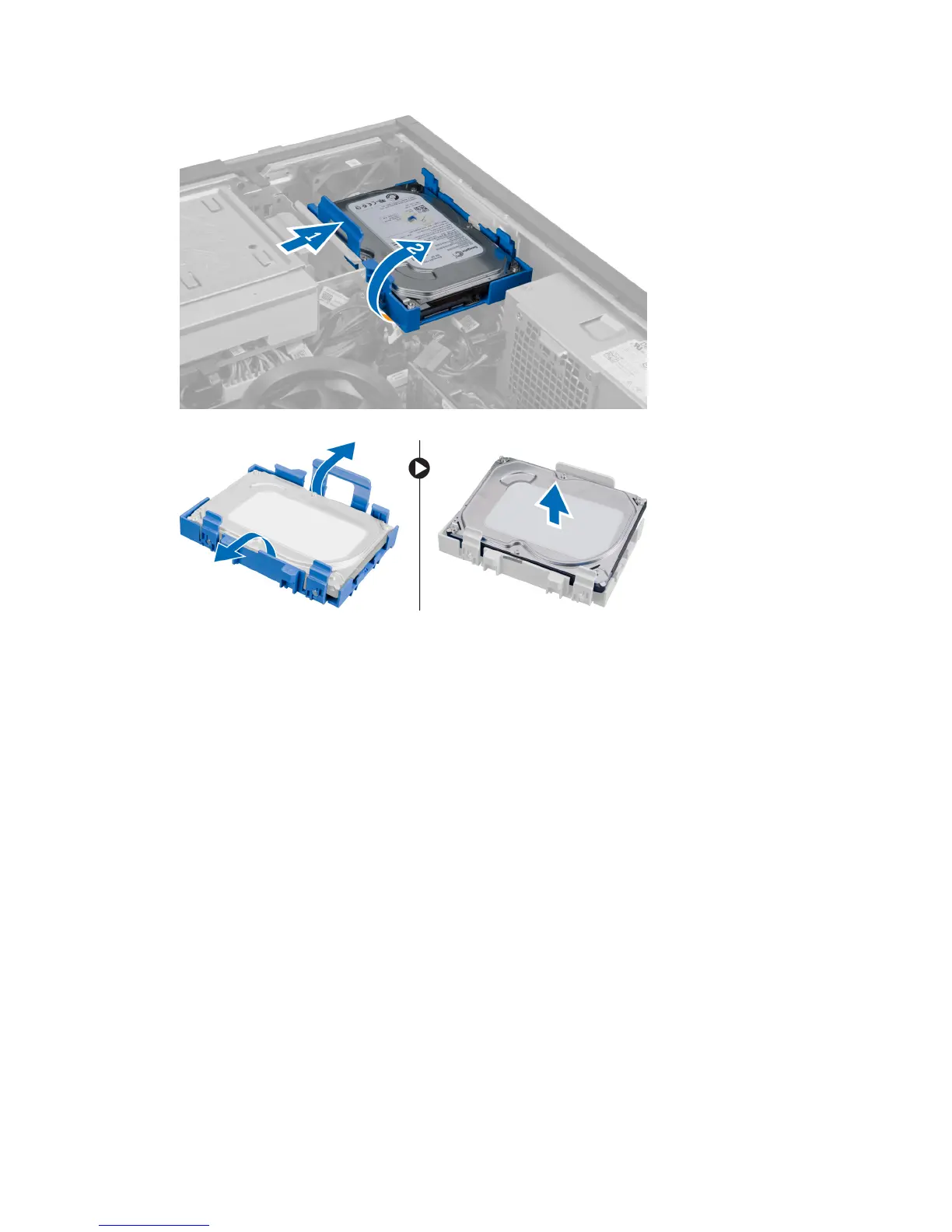

5. Flex the hard drive bracket and then remove the hard drive from the bracket.
6. Repeat the preceding steps for the second hard drive, if available.
Installing The Hard Drive
1. Insert the hard drive into the hard-drive bracket.
2. Press both blue securing-bracket tabs inward and slide the hard drive bracket into the bay in the chassis.
3. Connect the data cable and the power cable to the hard drive.
4. Install the cover.
5. Follow the procedures in
After Working Inside Your Computer
.
Removing The Optical Drive
1. Follow the procedures in
Before Working Inside Your Computer
.
2. Remove the
a) cover
b) front bezel
16
