Dell OptiPlex 7010 - Page 30

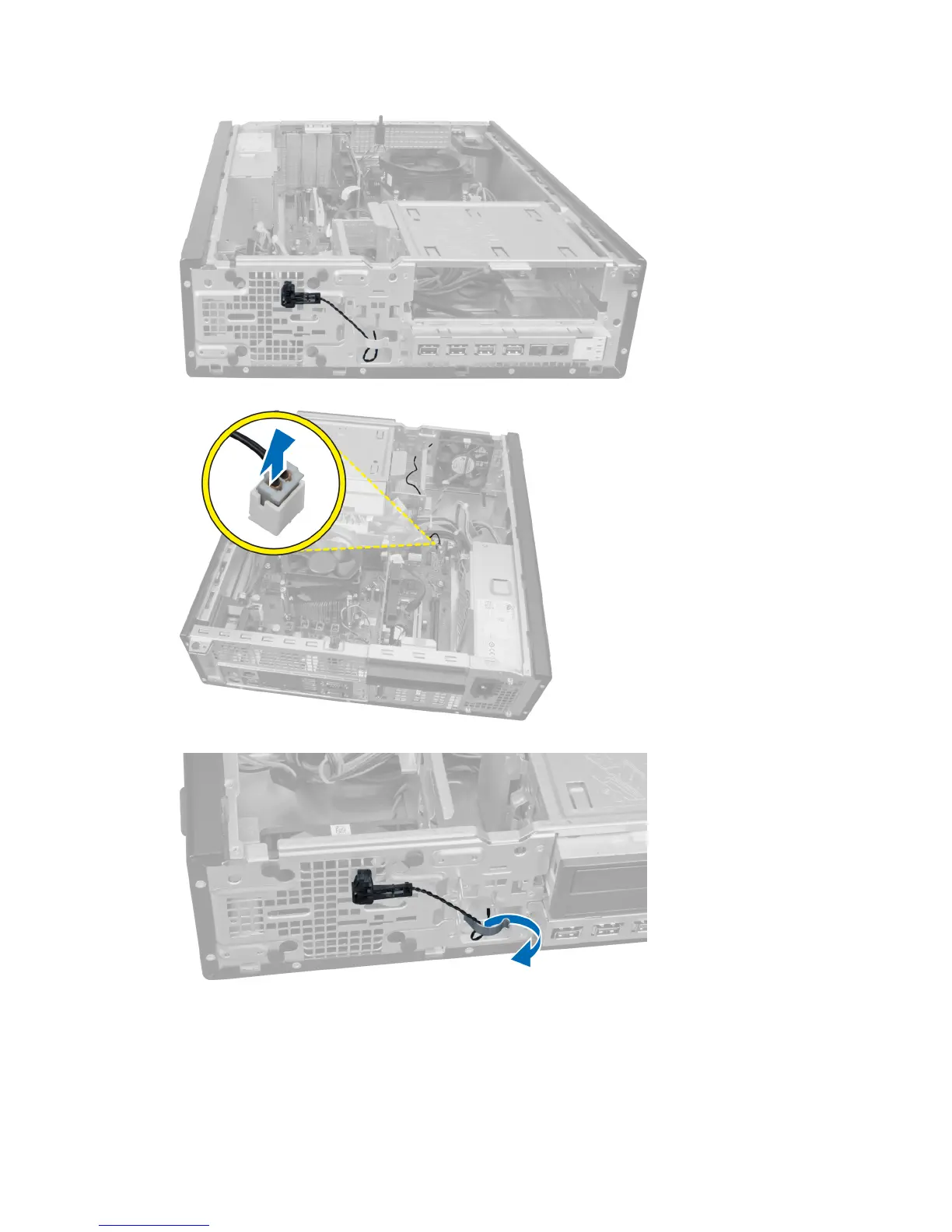

3. Disconnect the thermal-sensor cable from the system board.
4. Release the thermal-sensor cable from the chassis clips.
5. Gently press the tabs from both sides to release and remove the thermal sensor away from the chassis.
30
