Dell OptiPlex 9030 - Installing the Memory; Removing the VESA Mount Bracket

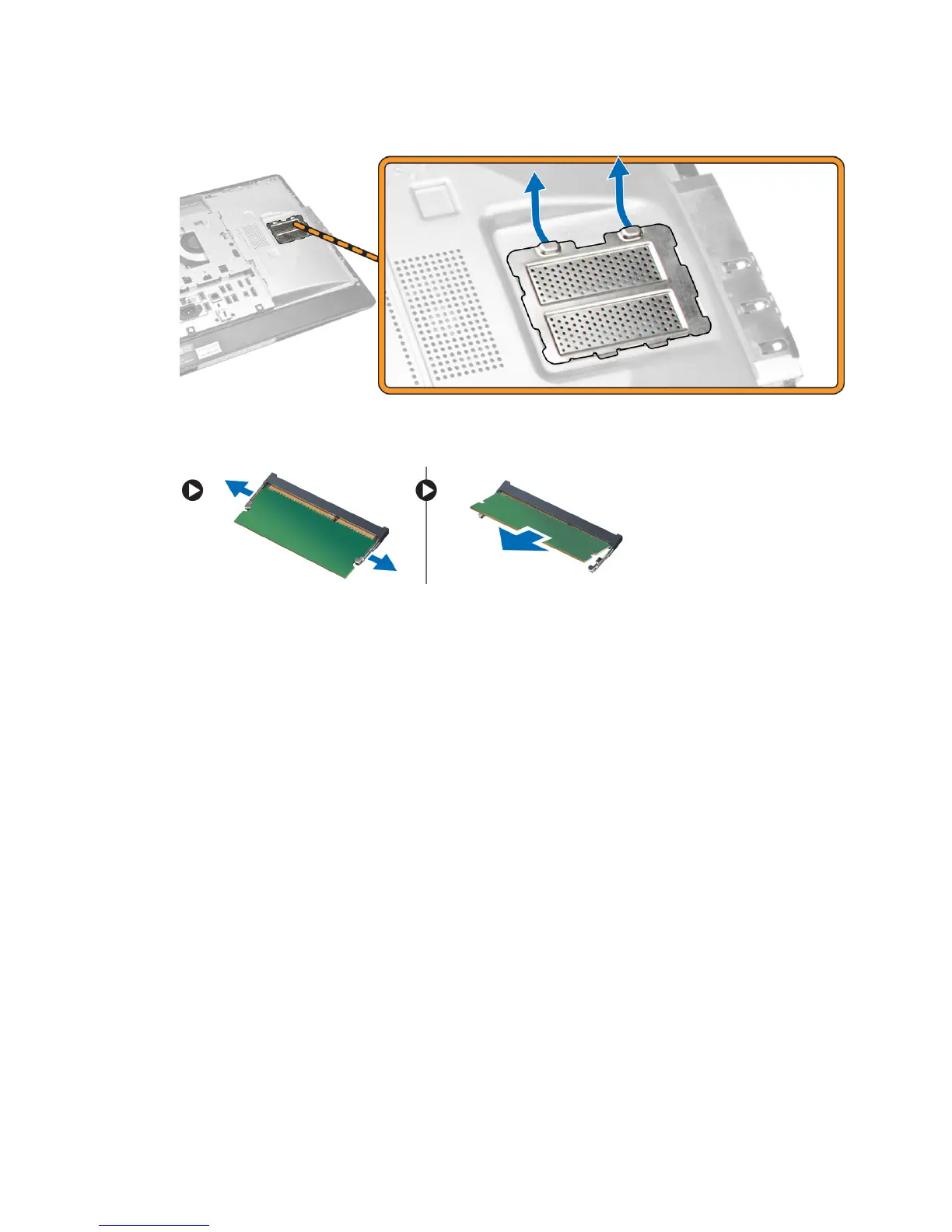

3. Lift the memory shield outwards.
4. Pry the retention clips away from the memory module until it pops-up. Lift and remove the memory
module from its connector.
Installing the Memory
1. Align the notch on the memory-card with the tab in the system-board connector.
2. Press down on the memory module until the release tabs spring back to secure them in place.
3. Place the memory shield back into its place.
4. Install the:
a. back cover
b. VESA stand
5. Follow the procedures in After Working Inside Your Computer.
Removing the VESA Mount Bracket
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the:
a. VESA stand
b. back cover
13
