3. Disconnect the cables from the converter board.

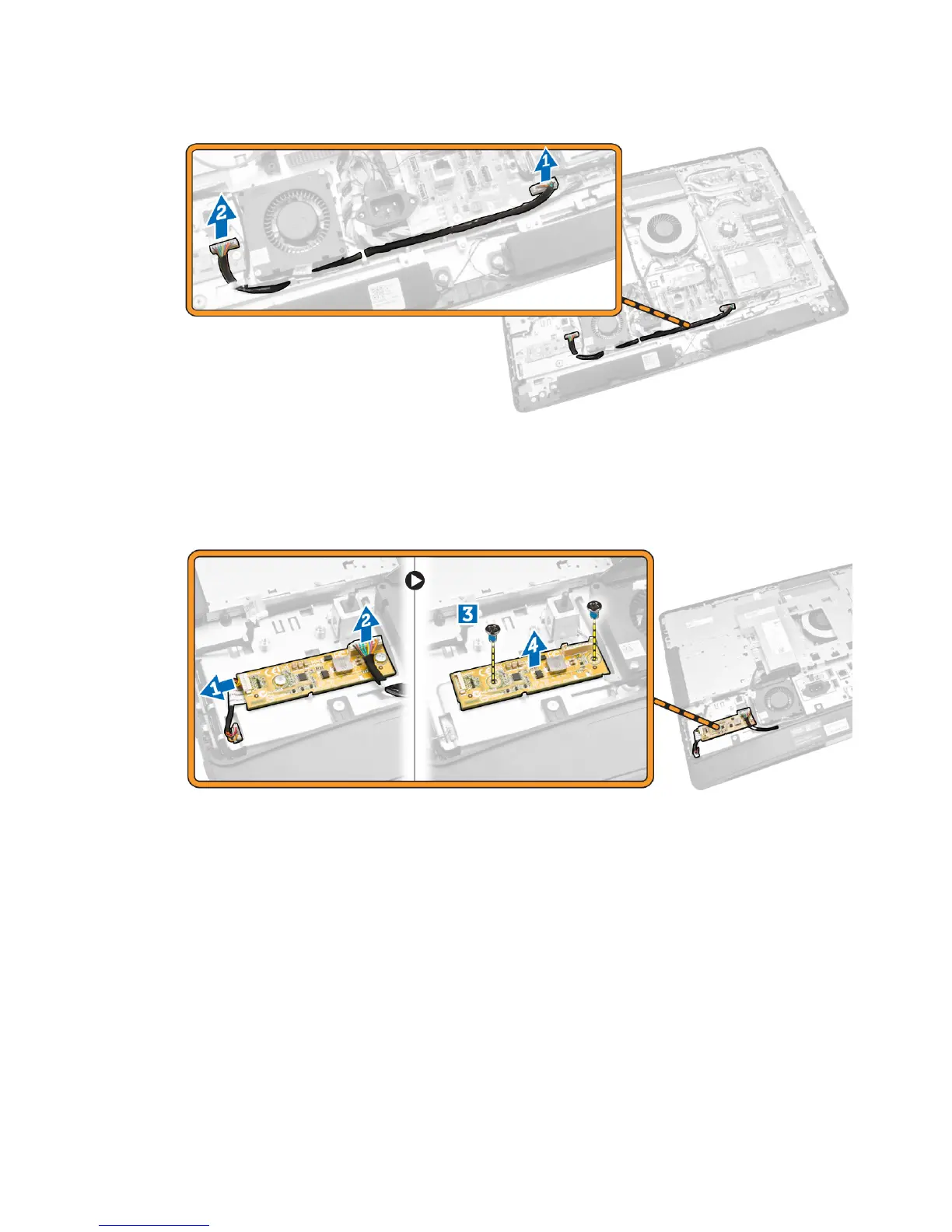

4. Perform the following steps as shown in the illustration:
a. Disconnect the display-backlight cable from the connectors on the converter board [1].
b. Disconnect the converter-board cable from the connectors on the converter board [2].
c. Remove the screws that secure the converter board to the computer [3].
d. Lift the converter board away from the computer [4].
Installing the Converter Board
1. Place the convertor board into its place.
2. Tighten the screws to secure the converter board to the computer.
3. Connect the converter-board cable and display-backlight cable to the connectors on the converter
board.
4. Install the:
a. back cover
b. VESA stand
5. Follow the procedures in After Working Inside Your Computer.
