Dell OptiPlex 9030 - Removing the Speakers

Removing the Speakers
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the:
a. VESA stand
b. back cover
c. VESA mount bracket
d. system-board shield
e. I/O board shield
f. speaker cover

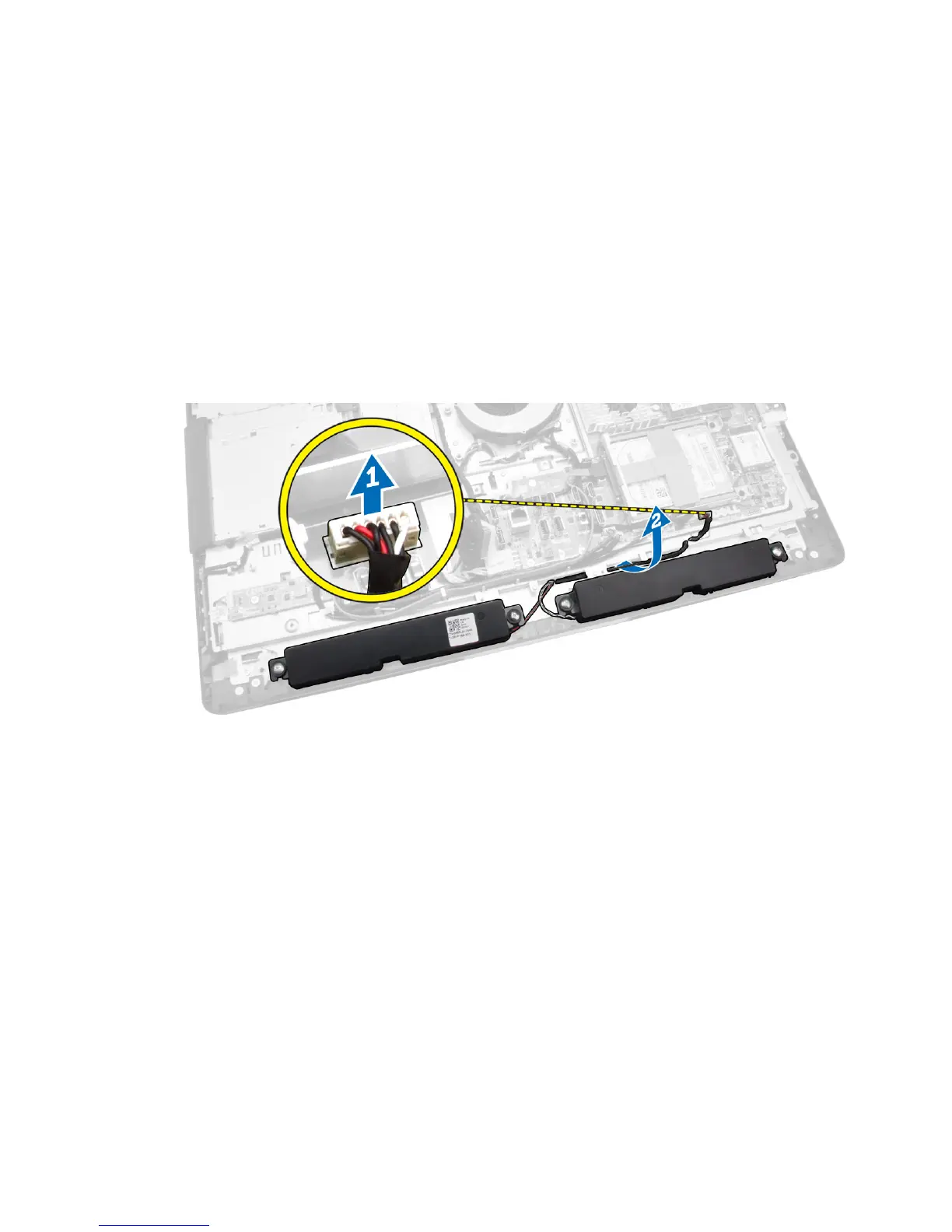

3. Perform the following steps as shown in the illustration:
a. Disconnect the speaker cables from the connector on the system board [1].
b. Unthread the cables from the notches [2].
