Dell P144G - M.2 Solid-State Drive; Removing the M.2 2230 Solid-State Drive; Installing the M.2 2230 Solid-State Drive

Steps
1. Remove the (M2x3) screw that secures the solid-state drive to the system board.
2. Slide and remove the solid-state drive from the solid-state drive slot on the system board.
Installing the M.2 2230 solid-state drive
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

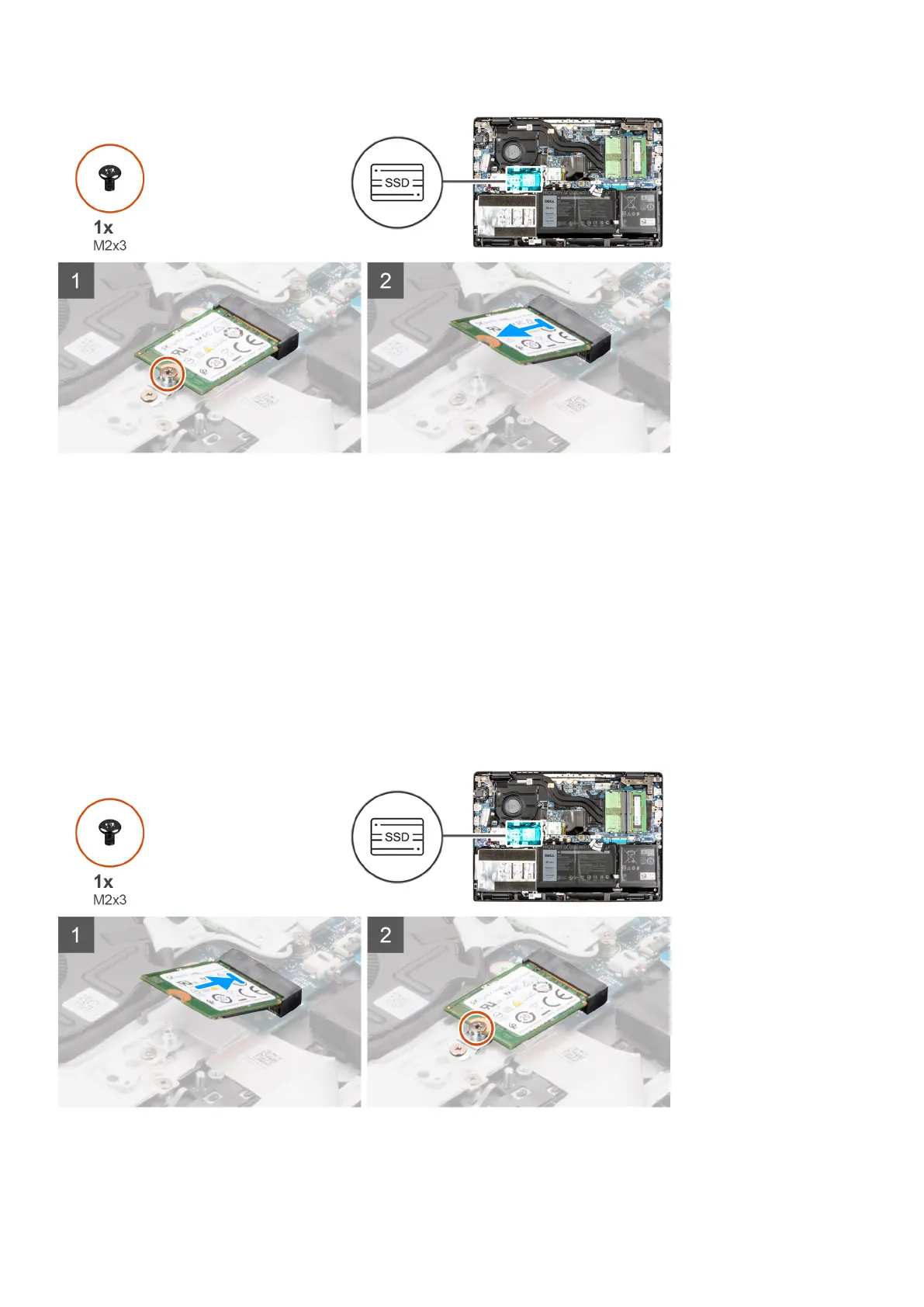

The following image indicates the location of the solid-state drive and provides a visual representation of the installation
procedure.
Steps
1. Align the notch on the solid-state drive with the tab on the solid-state drive slot.
Removing and installing components
25
