Installing the I/O cable
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

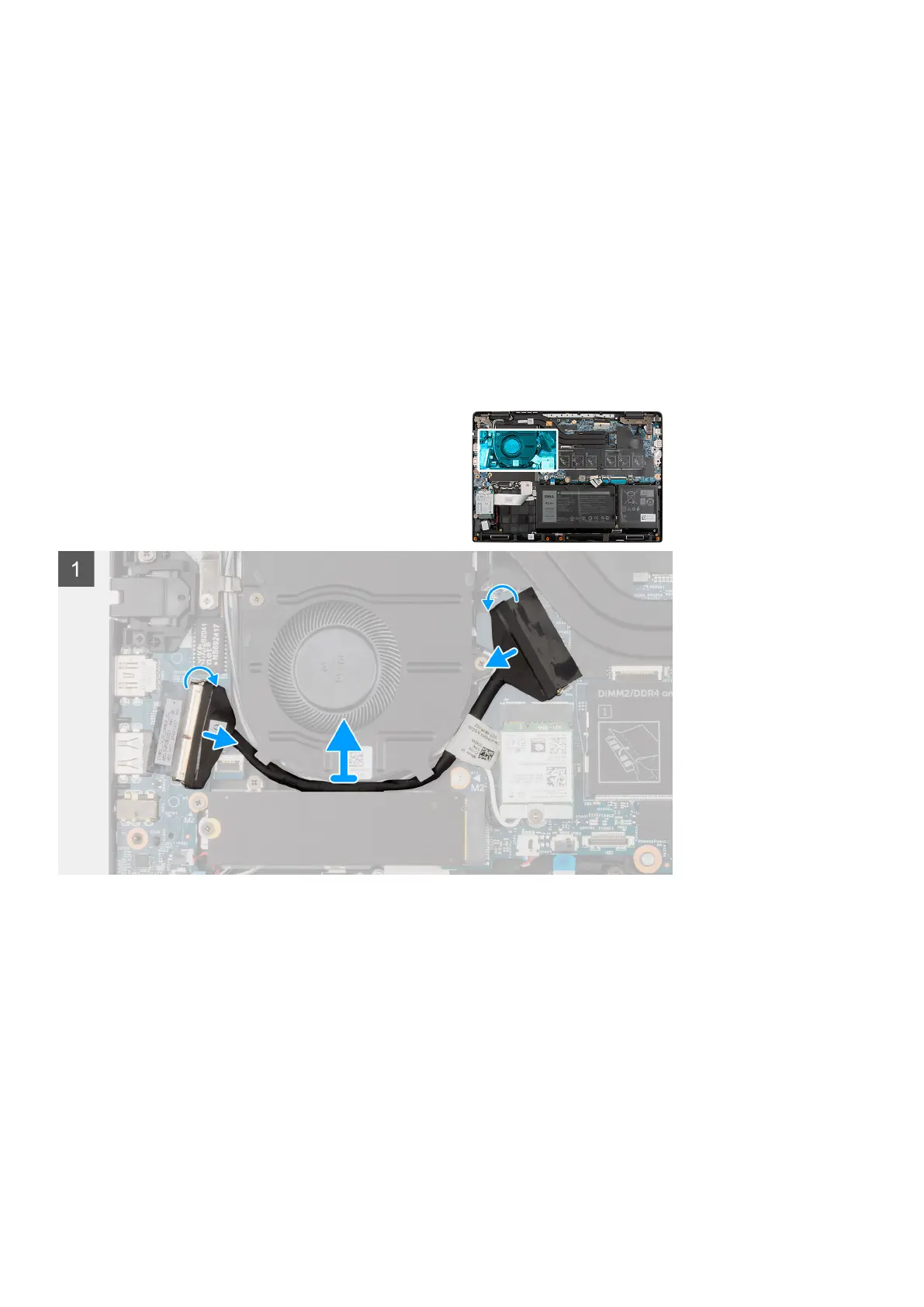

The following image indicates the location of the I/O cable and provides a visual representation of the installation procedure.
Steps
1. Route the I/O cable through the routing guides and adhere the adhesive tape to secure the I/O cable in place.
2. Connect the I/O cable to the connector on the system board, adhere the adhesive tape, and close the latch.
3. Connect the I/O cable to the connector on the I/O board, adhere the adhesive tape, and close the latch.
Next steps
1. Install the base cover.
2. Exit the service mode
3. Install the microSD-card.
4. Install the SIM card tray for 4G LTE enabled systems.
5. Follow the procedure in after working inside your computer.
Display assembly
Removing the display assembly
Prerequisites
1. Follow the procedure in before working inside your computer.
