Installing the I/O board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
NOTE:
NOTE: The following image is from systems without power button.

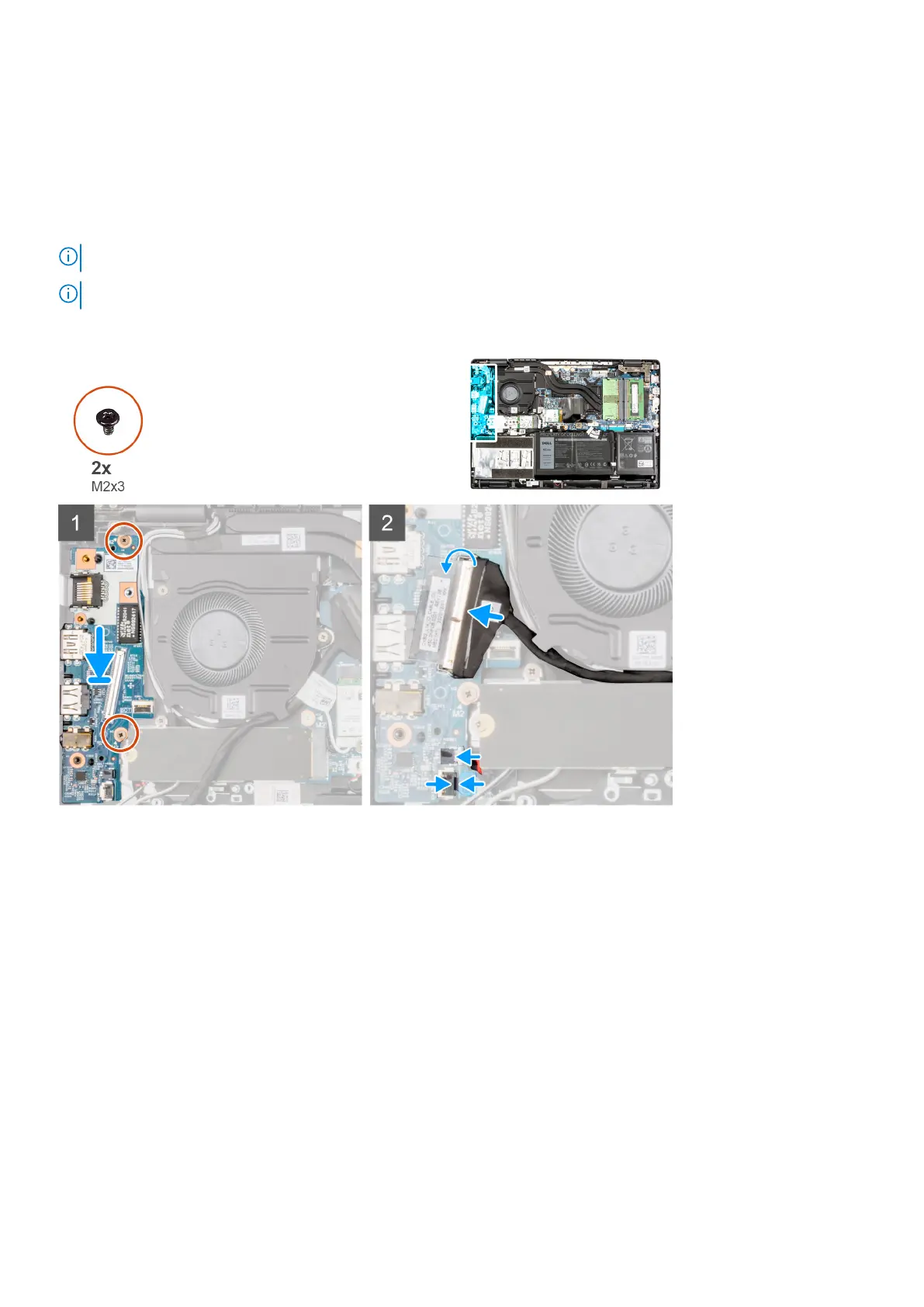

The following image indicates the location of the I/O board and provides a visual representation of the installation procedure.
Steps
1. Align and place the I/O board into its slot on the palmrest assembly.
2. Install the two (M2x3) screws that secure the I/O board on the palmrest assembly.
3. Connect the USB cable and coin-cell cable to the connectors on the system board.
4. Connect the I/O cable to the connector on the system board and close the latch.
5. For systems shipped with power button, connect the power button cable to the connector on the I/O board, close the latch
and affix the adhesive tape.
Next steps
1. Install the ethernet port.
2. Install the base cover.
3. Exit the service mode
4. Install the SIM card tray for 4G LTE enabled systems.
5. Install the microSD-card.
6. Follow the procedure in after working inside your computer.
