About this task

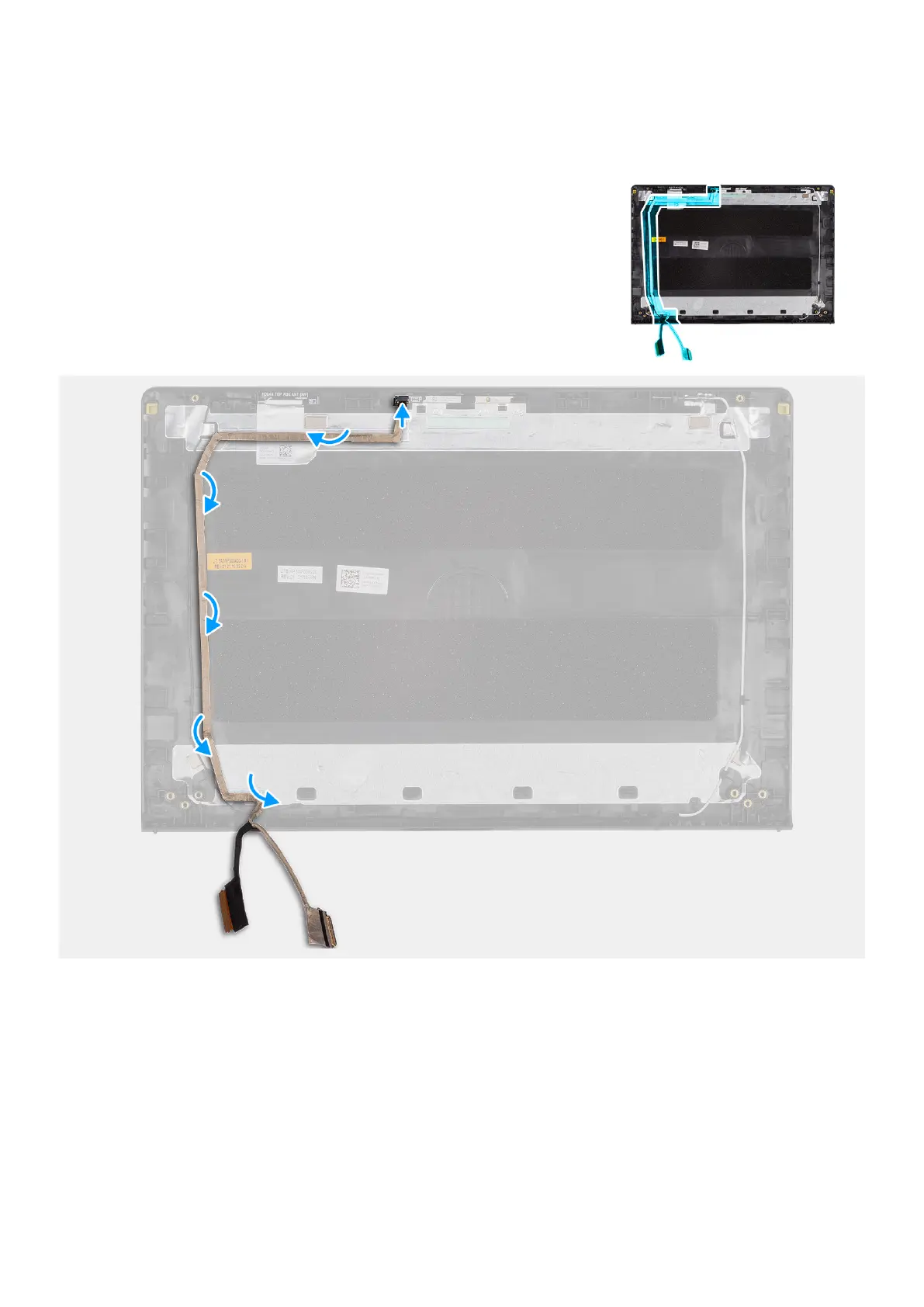

The following image indicates the location of the eDP cable (in a system shipped with plastic chassis) and provides a visual
representation of the installation procedure.
Steps
1. Adhere the tape to securing the eDP cable to the display back cover.
2. Connect the eDP cable to the camera.
Next steps
1. Install the display panel.
2. Install the hinges.
3. Install the display bezel.
4. Install the hinge caps.
5. Install the plastic display assembly.
Removing and installing Field Replaceable Units (FRUs)
115
