Steps
1. Connect the battery cable to the connector on the system board.
2. Place and snap the base cover into place on the palm-rest and keyboard assembly.

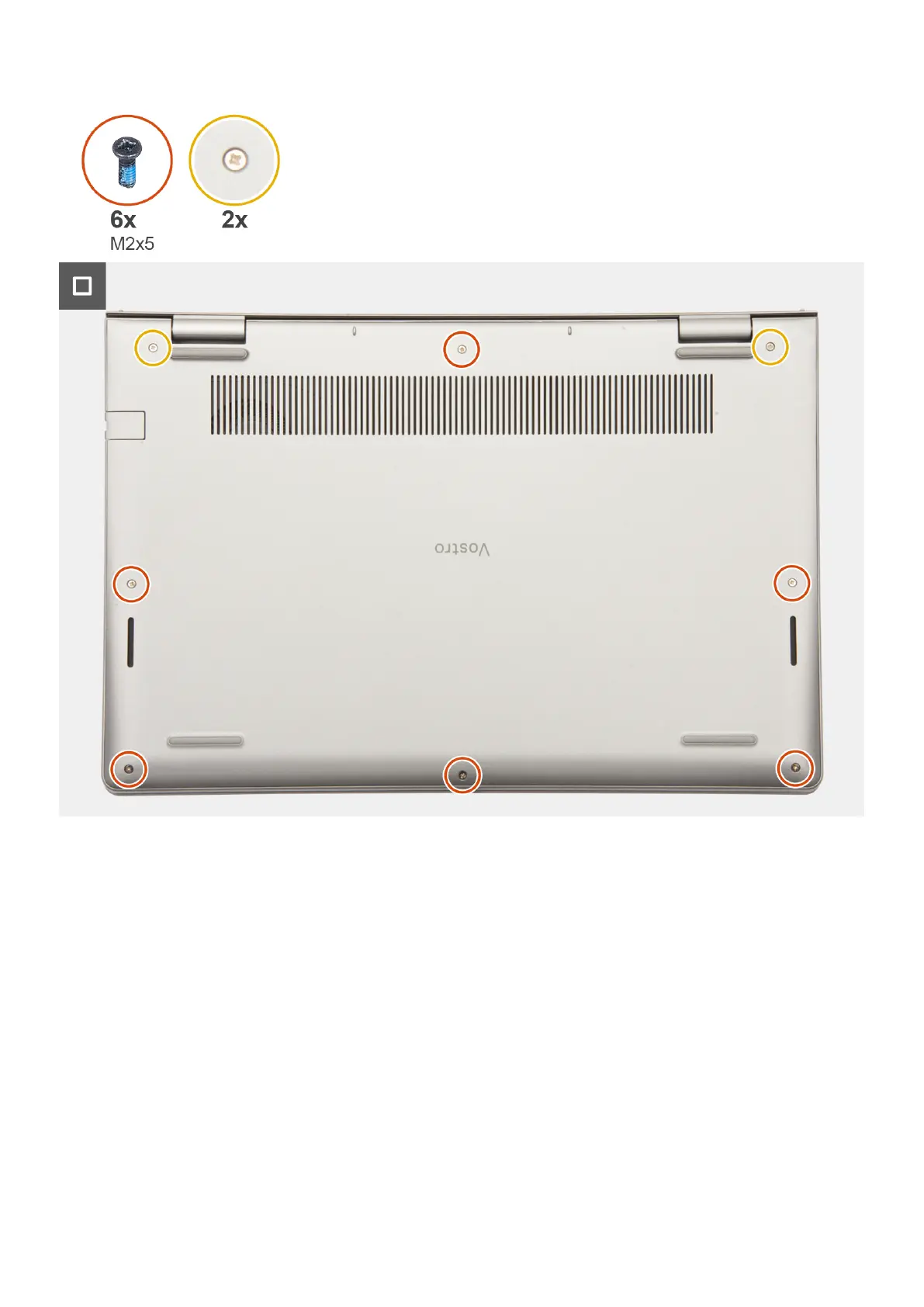

3. Tighten the four captive screws that secure the base cover to the palm-rest and keyboard assembly.
4. Replace the four screws (M2x5) that secure the base cover to the palm-rest and keyboard assembly.
Next steps
1. Install the SD card.
2. Follow the procedure in After working inside your computer.
44
Removing and installing Customer Replaceable Units (CRUs)
