About this task

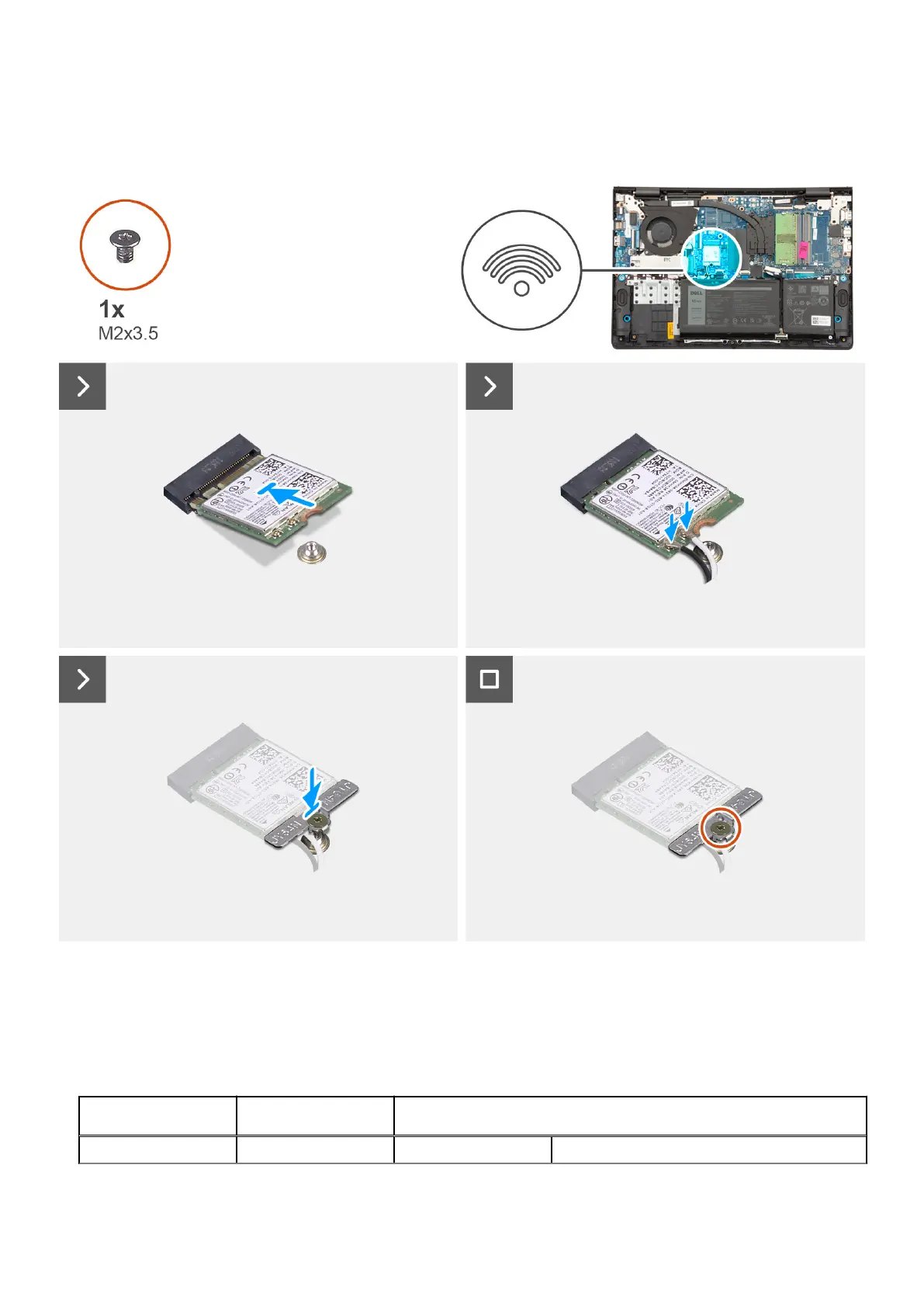

The following images indicate the location of the wireless card and provide a visual representation of the installation procedure.
Steps
1. Slide the wireless card into the WLAN slot on the system board.
2. Connect the antenna cables to the wireless card.
The following table provides the antenna-cable color scheme for the wireless card supported by your computer.
Table 30. Antenna-cable color scheme
Connectors on the
wireless card
Antenna-cable color Silkscreen marking
Main White MAIN △ (white triangle)
Removing and installing Customer Replaceable Units (CRUs) 53
