Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
4. Remove the M.2 2230 solid state drive or M.2 2280 solid state drive (whichever applicable).
5. Remove the wireless card.
About this task

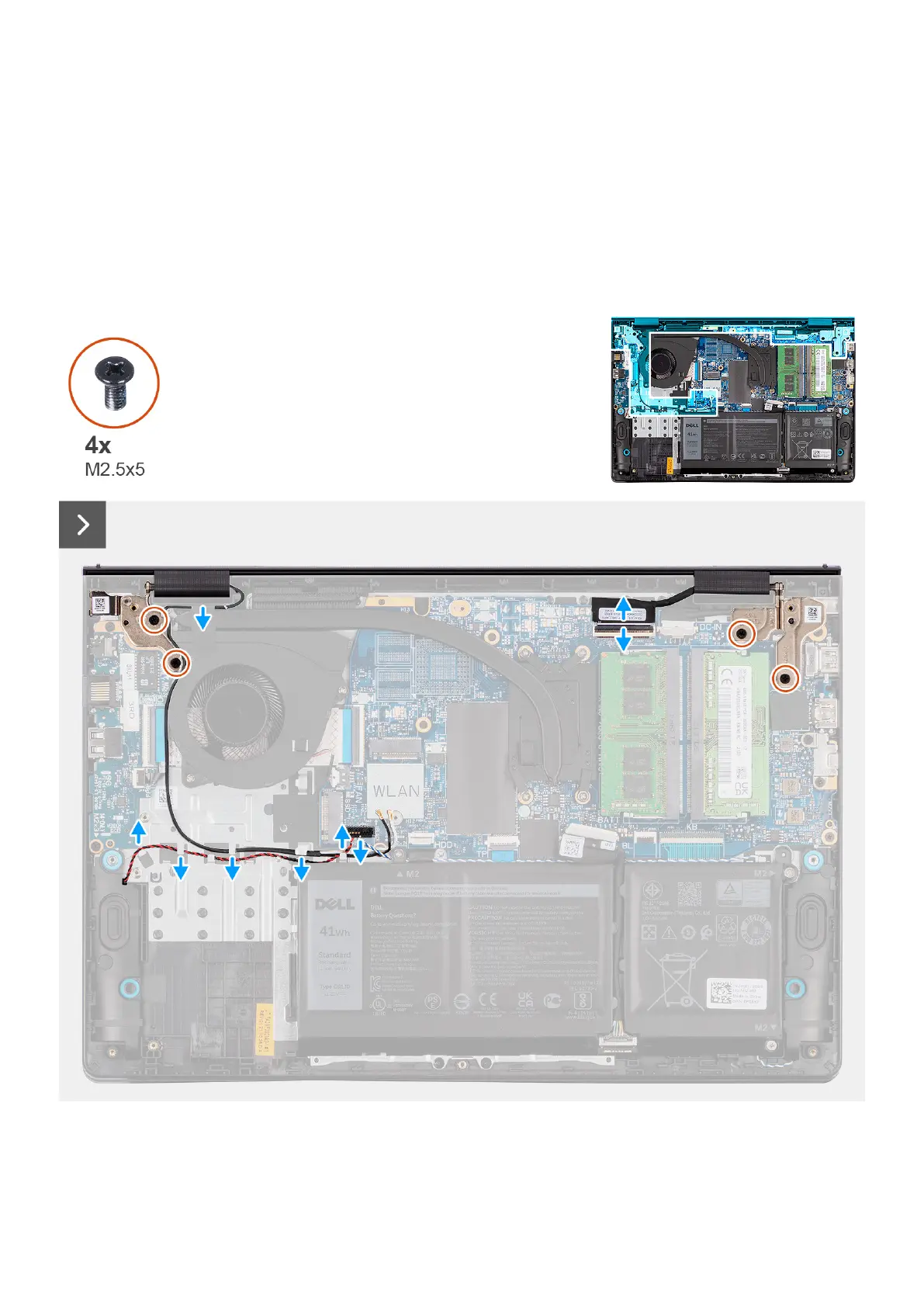

The following images indicate the location of the display assembly and provide a visual representation of the removal procedure.
Removing and installing Field Replaceable Units (FRUs) 79
