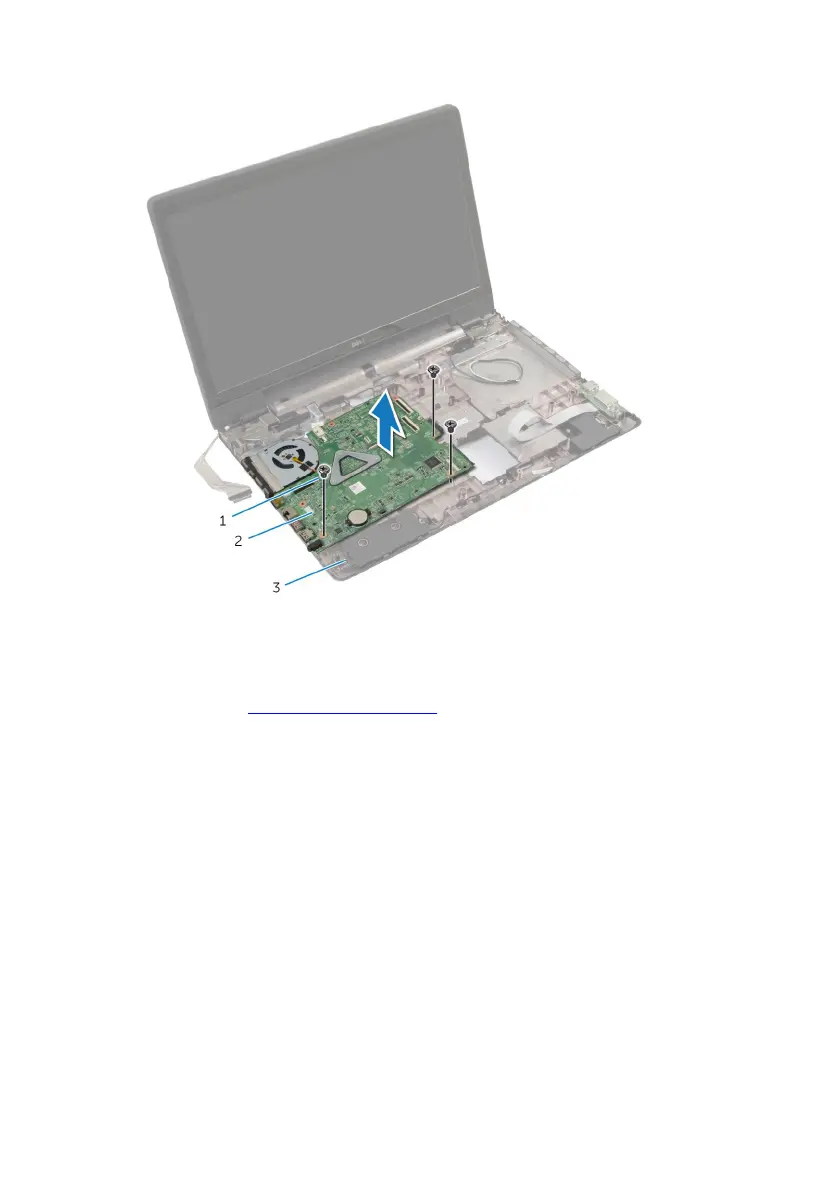

10 Lift the system-board assembly off the computer base.

1 screws (3) 2 system-board assembly

3 computer base

11 Remove the heatsink-sink assembly.
