22 │ About Your Monitor

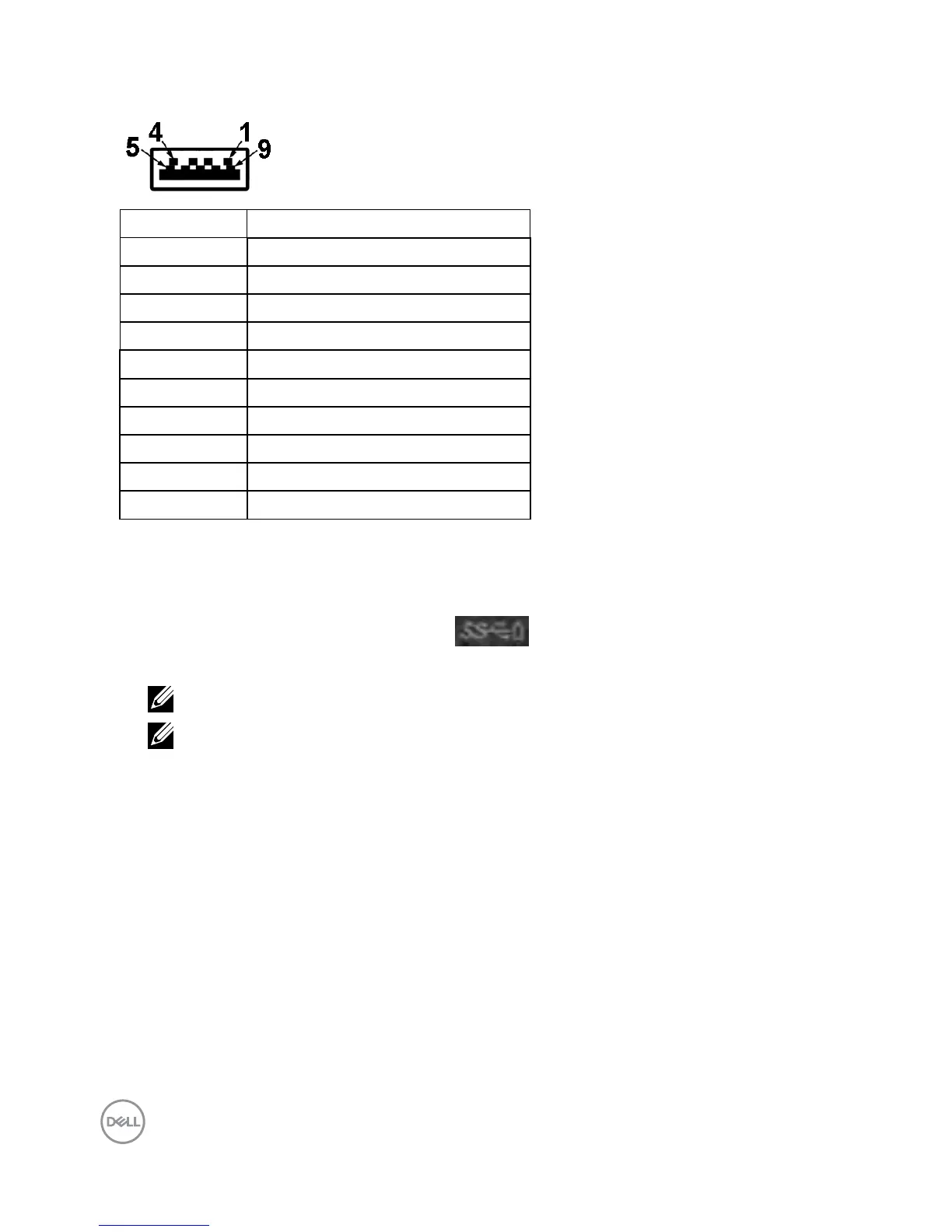

USB Downstream Connector
Pin Number 9-pin Side of the Connector
1 VCC
2 D-
3 D+
4 GND
5 StdA_SSRX_
6 StdA_SSRX+
7 GND_DRAIN
8 StdA_SSTX-
9 StdA_SSTX+
Shell Shield
USB Ports
• 1 upstream - bottom
• 4 downstream - 2 bottom and 2 side
• Power Charging Port- (USB ports with lightning icon) ; supports fast current
charging capability if the device is BC 1.2 compatible.
NOTE: USB 3.0 functionality requires a USB 3.0-capable computer.
NOTE: The monitor’s USB interface works only when the monitor is On or
in the power-save mode. If you turn Off the monitor and then turn it On, the
attached peripherals may take a few seconds to resume normal functionality.
