Dell P792 - Chassis

— 27 —
P792
NOTE: The components identifi ed by shading and ! mark are critical for safety.
Replace only with part number specifi ed.
NOTE: Les composants identifi es par un trame et une marque ! sont critiques pour
la securite. Ne les remplacer que par une piece portant le numero specifi e.
REF. NO. PART NO. DESCRIPTION [Assembly Includes]
* 20 A-1372-991-A H2 MOUNTED PC BOARD
* 21 A-1348-111-A D COMPLETE PC BOARD
The high-voltage leads associated with the FBT on this board are not
included and must be ordered separately (See 23-26).
22 4-080-245-02 CAP, POWER
! 23 1-453-365-21 FBT ASSY NX-4405//VQL4 [24-26]
! 24 1-900-805-62 G2 LEAD
! 25 1-900-805-55 FOCUS LEAD
! 26 1-251-643-31 HV CAP ASSY
27 3-704-372-71 HOLDER, HV CABLE
28 X-4038-993-1 BASE ASSY, STAND [29-32]
* 29 4-060-533-01 CUSHION
30 4-080-491-01 RING, TILT
31 4-080-489-11 SLIDER
32 4-080-252-02 STOPPER
33 1-815-380-21 INLET, AC
* 34 4-081-651-02 HOLDER, CABLE
35 4-080-253-11 COVER, PIGTAIL
36 1-757-472-21 CABLE ASSY (15 DSUB CONNECTOR)
23
22
20
21
24
25
26
27
35
31
33
30
29
28
34
32
36

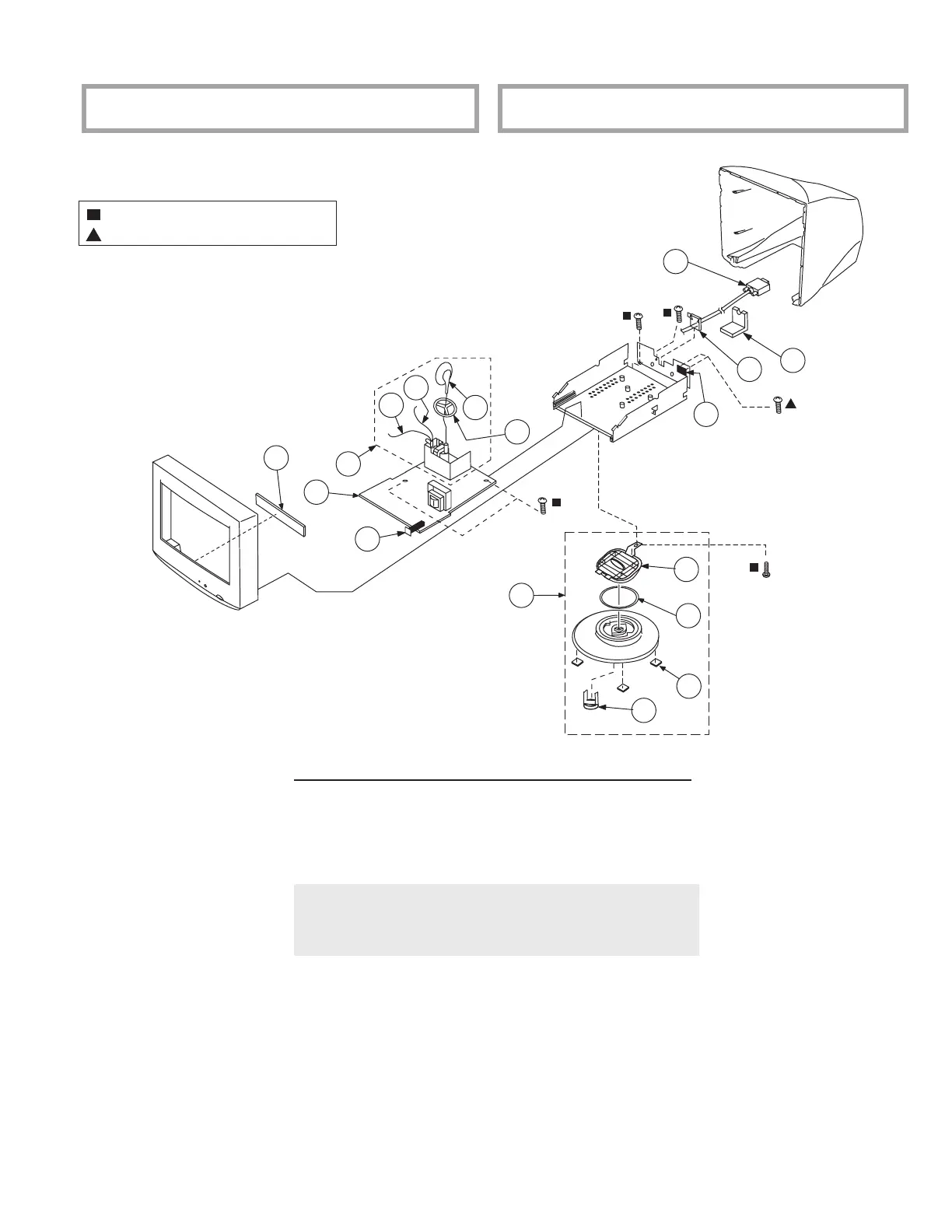

5-2. CHASSIS
7-685-646-71 SCREW +BVTP 3x8 TYPE 2 IT-3
4-052-345-01 SCREW, (3x8) (+K) TAPPING
