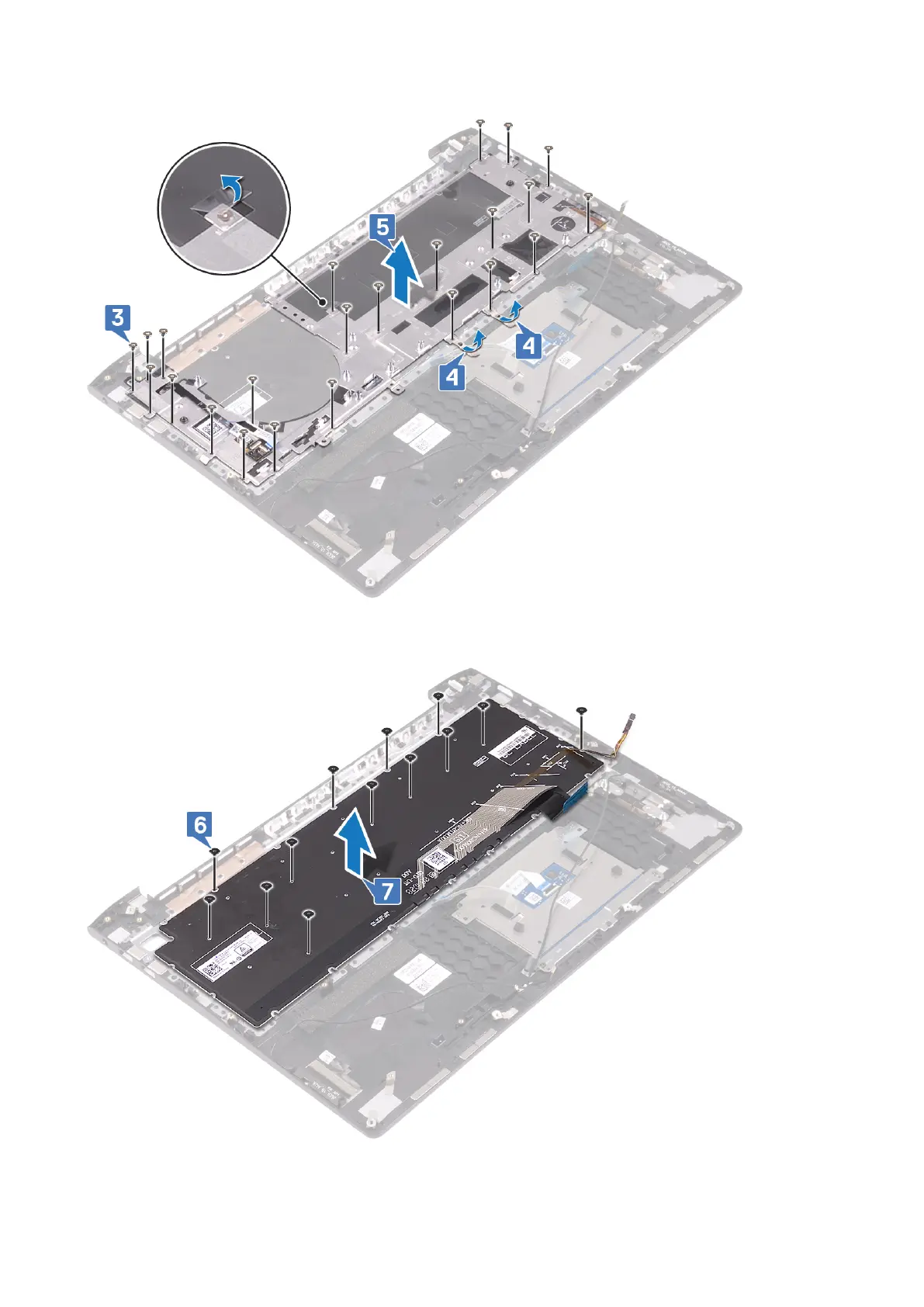

6. Remove the 19 screws (M1.2x1.5) that secure the keyboard to the palm-rest assembly.

7. Lift the keyboard off the palm-rest assembly.

Removing the keyboard
