Next steps
1. Replace the battery cable.
2. Replace the base cover
3. Replace the SD memory card
4. Follow the procedure in after working inside your computer
Removing the M.2 Solid-state drive bracket
Prerequisites
1. Follow the procedure in before working inside your computer
2. Remove the SD memory card
3. Remove the
base cover
4. Disconnect the battery
cable
Steps

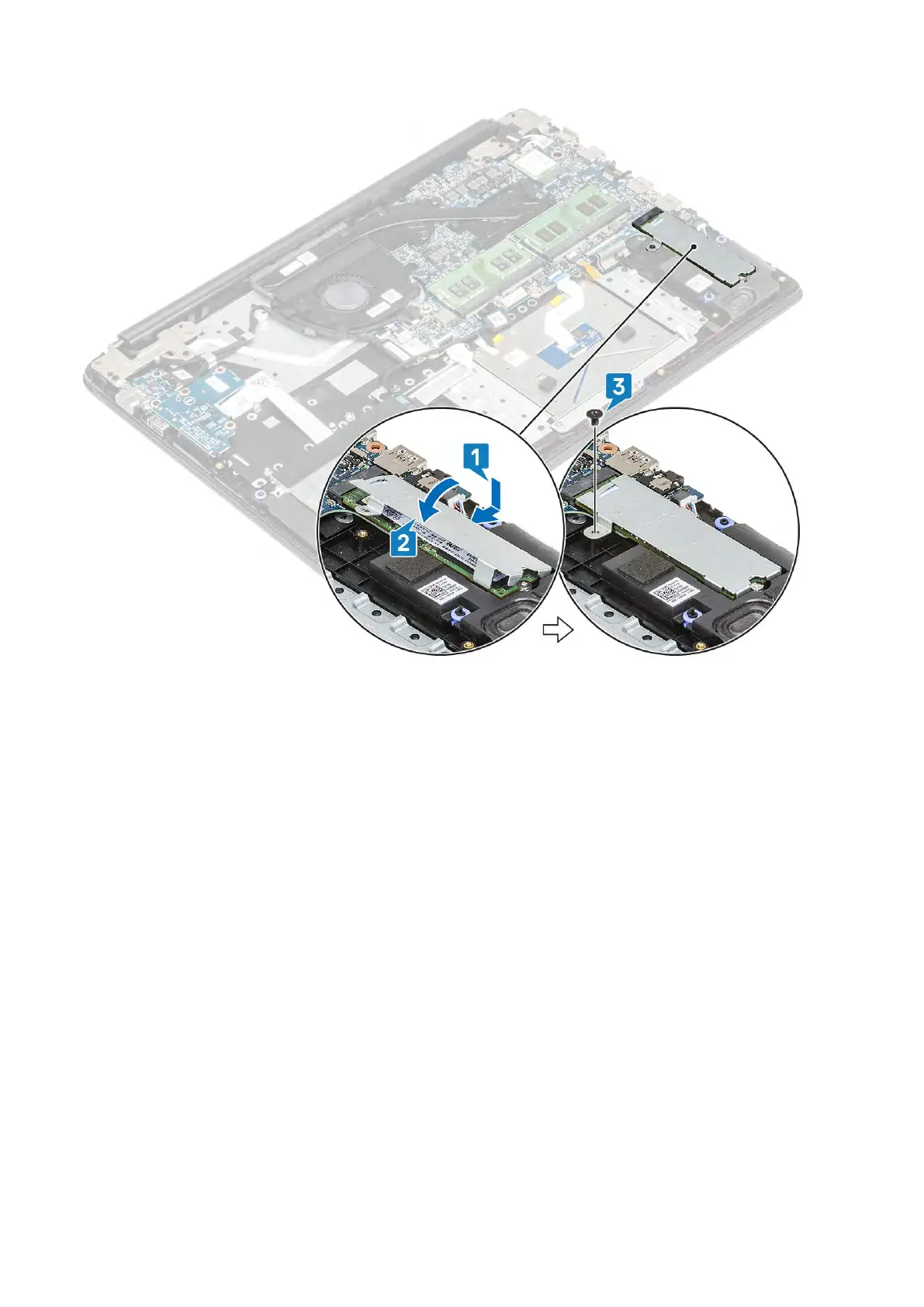

1. Remove the single (M2x3) screw that secures the solid-state drive bracket to the palmrest and keyboard assembly [1].
2. Remove the solid-state drive bracket from the palmrest and keyboard assembly [2].
Removing and installing components 49
